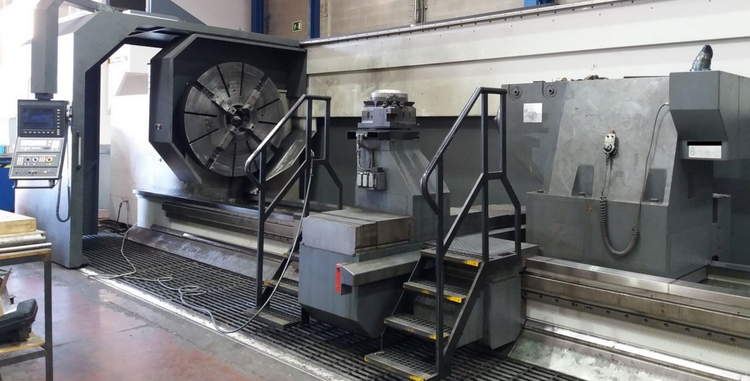

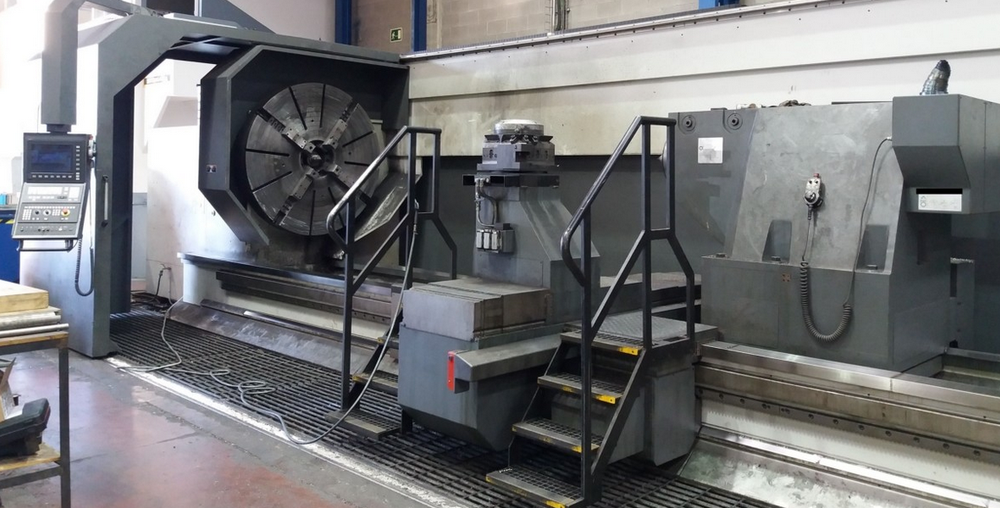

Geminis CNC CONTROL 700 rpm GT9 G2 2 Axis

Maximum turning diameter over bed: 2,000 mm
Turning length: 8,000 mm
Spindle height: 1,050 mm
Maximum turning diameter over carriage: 1,600 mm
Main spindle bore: 150 mm
Main spindle: DIN 55026-15

Speed ranges: 4
Speed range I: 0-80 rpm
Speed range II: 0-175 rpm
Speed range III: 0-350 rpm
Speed range IV: 0-700 rpm

Cross slide travel: 1,060 mm
Steadies diameter: 400 mm
Steadies travel: 300 mm
Maximum weight between centers: 30 t
Bed guide distance: 1,350 mm
Bed height: 650 mm
CNC control: FAGOR 8065
Self-centering 4-jaw chuck: Ø 1,600 mm
Set of hard inner and outer jaws

Automatic turret with square magazine: SAUTER 4 pos – Ø 320 x 320 mm
Tailstock and quill: motorized
Tailstock quill positioning: built-in turning device
Automatic locking/unlocking of tailstock body
Control cabinet air conditioning
Portable electronic handwheel
Chip conveyor
4-point supported closed steadies: Ø 500-900 mm
Allowed steady weight: 10 t

Prepared for C-axis with main motor gear
Prepared for future milling head with Y-axis on turret
Prepared for rectifier head installation
Extensive tooling available
