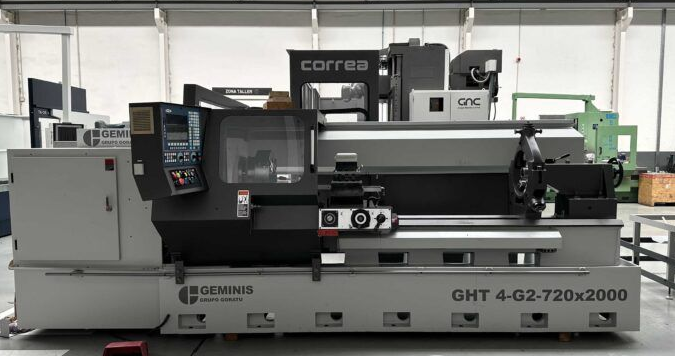

Geminis FAGOR 8055 1600 RPM GHT4 720×2.000 2 Axis

GEMINIS GHT4 720×2.000
Year 2002

CNC FAGOR 8055
Max. Swing Over Bed Max. Ø 720 mm.
Max Swing Over Cross Slide Ø 470 mm.
Centers height over guide 366 mm.
Distance between Centres 2.000 mm.
Rapid Feed X/Z Axis 8 m/min

Spindle
Spindle Nose DIN-55027-11
Main spindle hole 104 mm.
Turning Speed 0-1600
Spindle Automatic Ranges 2
Main Motor Power 17/ 20.5 kW.
Max torque 1590/1920 Nm

Tailstock
Ø Tailstock Quill 100 mm
Tailstock Quill Traverse 200 mm
Tailstock Quill Morse 6

Equipment
Turret 4 Pos-Automática.
Back Protection INCLUDED
3-Jaw universal chuck INCLUDED
Fix Steady Rest 50/220 INCLUDED
Max allowed weight
Max allowed weight between centers 2.560 kg
With 1 Steady rest / 2 steady rests 3.200/4.000 kg
At air with gravity centre 250 mm 800 kg

Others
Total power 28 kW
Machine weight 4.900 kg.
Machine Dimensions 6.600 x 2.300 mm
