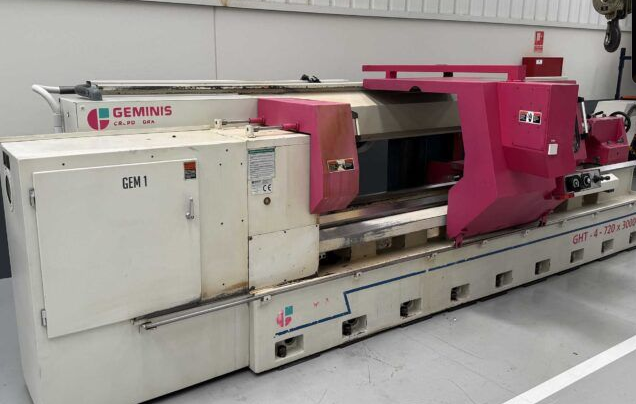

Geminis FAGOR 8055 TC/B 1600 rpm GHT-4 720 x 3000 2 Axis
Ref :
2792858-3-GO
Condition :
Used
Manufacturer :
Geminis
Controller :
FAGOR 8055 TC/B
Spindle Speed :
1600 rpm
Model :
GHT-4 720 x 3000
Nb Of Axis :
2 Axis
Year(s) :
1999
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Fast feedrate X/Z axis: 8,000 mm/min
Work feedrate X/Z axis: 8,000 mm/min
Max swing over bed: 720 mm
Max swing over cross slide: 470 mm
Distance between centers: 3,000 mm
CNC control: FAGOR 8055 TC/B
Main spindle speed: 0 – 1,600 rpm
Main spindle power: 17 / 20.5 kW
Main spindle bore: 92 mm
Main spindle nose: DIN-55027-11
Spindle torque: 1,590 / 1,920 Nm
Turret type: Duplomatic VDI 40
Driven tool positions: 8
Chuck diameter: 315 mm
3 jaw chuck included
Chuck protection included
Fixed steady rest included
Rear protection included
Handwheels in carriage included
Longitudinal chip conveyor included
Total power: 28 kW
Machine weight: 5,700 kg
Machine length: 6,800 mm
Machine width: 2,385 mm
Machine height: 1,765 mm
