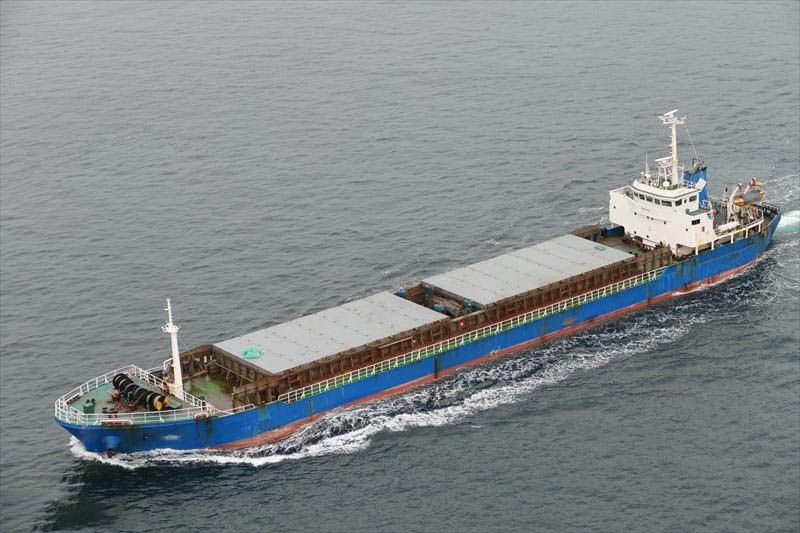

GENERAL CARGO SHIP ABT 3700DWT

ABT 3700DWT GENERAL CARGO SHIP
1997

Vessel type: General cargo ship
DWT: 3700 tons
Deadweight cargo capacity: 3600 tons
Class: KR
LOA: 89.78 m
Length between perpendiculars: 83.60 m
Beam: 13.5 m
Depth: 7.0 m
Draft: 5.20 m
Light draft: 2.4 m
Gross tonnage: 1995
Net tonnage: 1129
Number of holds: 2
Number of hatches: 2
Grain capacity: 4989 m³
Bale capacity: 4761 m³
Hatch cover type: Single pull
Hatch cover top strength: 2 t/m²
Hatch size No.1: 20.4 x 9.5 m
Hatch size No.2: 20.4 x 9.5 m
Hold size No.1: 29.4 x 13.5 m
Hold size No.2: 27.0 x 13.5 m
Hold depth: 7.75 m
Air draft: 23 m
Tons per centimeter immersion (TPC): 9 t/cm
Derrick: Gearless
Main engine: NIIGATA 6M34BLGT 2000 PS
Speed: 11.5 knots
Fuel oil consumption at sea: 4.5 t/day (IFO 120 CST)
Marine gas oil consumption at sea: 0.5 t/day
Marine gas oil consumption in port: 0.5 t/day
Fuel oil tank capacity: 118 m³
Diesel oil tank capacity: 39 m³
Fresh water capacity: 54 m³
Ballast water tank capacity: 867 m³
Bow thruster: Fitted
Next special survey/drydock: March 2025
