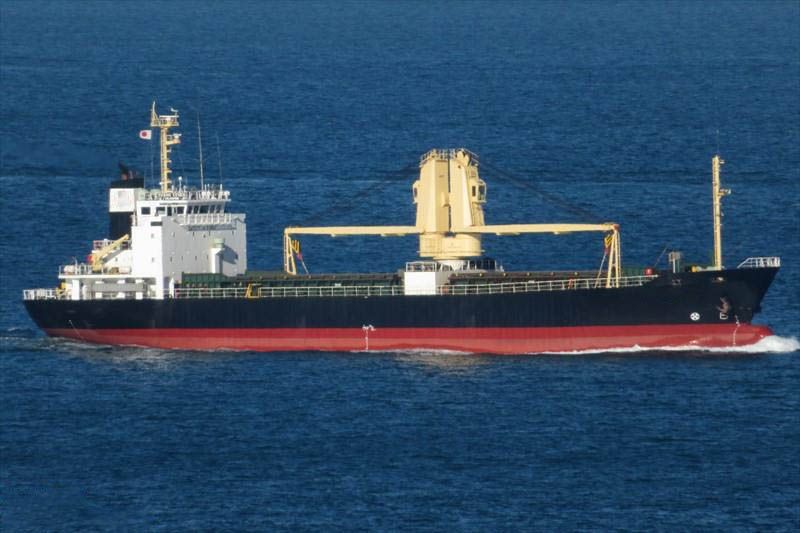

GENERAL CARGO SHIP ABT 3900

ABT 3900 GENERAL CARGO SHIP
2001

Deadweight 3870 tons
Gross Tonnage 1474
Net Tonnage 1308
ITC Tonnage 2972
Length Overall 83.90 m
Length Between Perpendiculars 78.97 m
Beam 14.80 m
Depth 9.00 m
Draft 5.992 m
Hold Count 2
Hatch Count 2
Hatch Size No.1 18.9 x 10.2 m
Hatch Size No.2 19.6 x 10.2 m
Hold No.1 Lower 26 x 11.2 x 4.8 m
Hold No.1 Upper 26.9 x 14.6 x 2.85 m
Hold No.2 Lower 25.9 x 11.2 x 4.8 m
Hold No.2 Upper 28.7 x 14.6 x 2.85 m
Grain Capacity 5853.18 m³
Bale Capacity 5530.2 m³
Hatch Type Single Pull Folding
Crane 25 ton x 2 sets (combinable)
Main Engine Akasaka 1912 kW @ 250 RPM
Service Speed 12 knots
Max Speed (Sea Trial) 14.0 knots
Fuel Consumption IFO180 5.2 ton/day @ 11 knots
Fuel Consumption MGO 0.47 ton/day @ 11 knots
Ballast Water Treatment System Not Installed
Crew Capacity 15 persons
Classification KR Great Coastal
Vessel Type General Cargo Ship
Next Special Survey November 2026
Next Dry Dock November 2024
Delivery Available January 2023
Builder Sasaki Shipbuilding Co., Ltd
Build Date November 12, 2001
