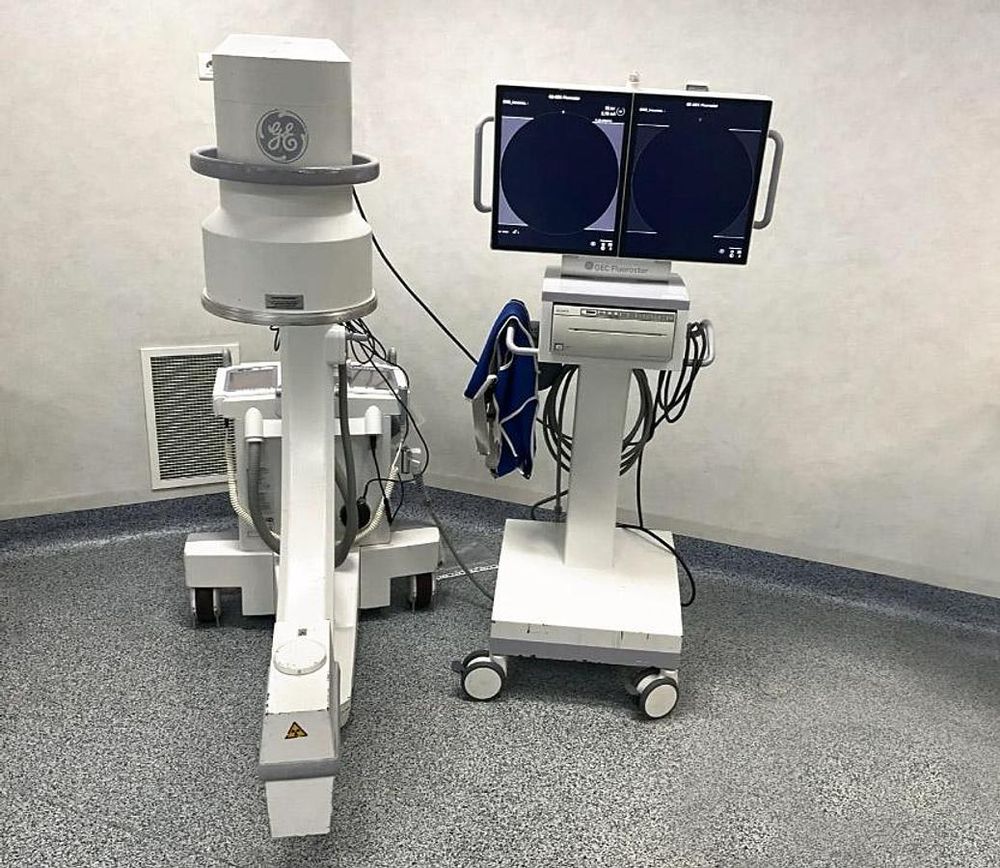

General Electric OEC Fluorostar

Composed of:
• A rolling module (Fluorostar MC) with 2 OEC FLUOROSTAR displays + image intensifier
(OEC 09TO)
• A Sony hybrid graphic UP-970AD printer
• Software version REV04.00.06
• Display versions: 4.00.58, BV: 4.00.33
• Installed options: Bitmap, DICOM Specifications: Generator
• High frequency 20 kHz
• Monoblock 2.2 kW
• Up to 110 kVp
• Up to 8 mA in fluoroscopic mode
• Up to 20 mA for radiographic film exposure
• High-performance pulsed mode up to 8 mA
• Pulse width: 50 ms
• Digital spot up to 8 mA X-ray tube
• Fixed anode X-ray tube
• Nominal foci of 0.5 and 1.5 mm
• Total tube assembly filtration > 3.9 mm Al Collimator PreView
• Collimator position indication on screen
• Iris PreView and dual-leaf collimator
• Independently adjustable asymmetric shutters
• Collimator adjustment without X-ray exposure

Standard Fluoroscopic Mode
• kVp range: 36-110
• mA range: 0.2-3
• Automatic and manual fluoroscopic modes

Hip Fluoroscopic Mode
• kVp range: 36-110
• mA range: 0.2-5.4
• Automatic and manual fluoroscopic modes

Low-Dose Fluoroscopic Mode
• kVp range: 36-110
• mA range: 0.2-3
• Automatic and manual fluoroscopic modes

Pulsed Fluoroscopic Mode
• kVp range: 36-110
• mA range: 0.2-5.4
• Pulse frequency: 1, 2, 4, 8 Hz
• Automatic and manual fluoroscopic modes

Low-Dose Pulsed Fluoroscopic Mode
• kVp range: 36-110
• mA range: 0.2-3
• Pulse rate: 1, 2, 4, 8 Hz pps
• Automatic and manual fluoroscopy modes

High-performance pulsed mode Fluoro mode
• kVp range: 36 to 110
• mA range: up to 8
• Pulse rate: 1, 2, 4, 8 ips
• Automatic and manual fluoro modes
• Pulse duration: 50 ms

Digital spot mode
• kVp range: 36 to 110
• 8 mA • Automatic exposure stop
• Automatic image recording

X-ray mode
• mA range: 20
• mAs range: up to 80
• Exposure time: 0.1 to 4 seconds
• Computer-controlled exposure time
• Cassette holder: 25.4 cm x 30.5 cm

Video Imaging System Features Precise imaging
• Auto window: Automatically adjusts brightness and contrast to
produce a high-quality image.
• Automatic exposure rate control
• Average filter
• Edge enhancement filter
• Preset imaging profiles: standard, dense anatomy (hip), hand,
chest, reduced dose. 23 cm image intensifier
• 23 cm/15 cm/11 cm tri-mode image intensifier tube
• Minimum center resolution (on monitor):
- 9" (23 cm): 2.0 lp/mm
- 6" (15 cm): 2.8 lp/mm
- 4.5" (11 cm): 3.2 lp/mm
• DQE: 65% (typical)
• Grid: 8:1 ratio1

Video Camera
• High-resolution 1000 × 1000 pixel CCD camera
• Fully digital interface
• Fixed gain control Video Display
• 19" (48 cm) monochrome

TFT-LCD flat panel
- Tilt: 23 cm
- Viewing angle: 160° horizontal and vertical
• Minimum brightness: 800 cd/m²
• Maximum brightness: 1000 cd/m²
• Minimum contrast ratio: 800:1
• High resolution 1280 x 1024
• External video output:
- DVI-I connector (compatible with VGA and DVI-D analog signals)
- Fixed resolution of 1280 x 1024 pixels Image Processing
• 1K x 1K x 12-bit image processing
• Dynamic recursive filter with motion adaptation
- Allows the user to adjust noise filter levels for optimal image quality
- Ensures optimal image quality even in motion
• Automatic control Digital brightness and contrast
• Manual control of digital brightness and contrast
• Edge enhancement
• Image negation mode
• Automatic image recording and saving
• Image exchange
• Last image hold (LIH)
• Zoom (up to 1600%) and image navigation
• Left-right flip
• Top-bottom flip
• Digital image rotation
- Real-time 360° rotation for dynamic and static images
- Image positioning without additional exposure
• Image annotation
- Laterality (left/right)
- Comments
• Storage of 15,000 images Exam management
• Patient information
- Exam list
- Personalized patient information
• Display and summary of X-ray DAP/dose
• Export and printing of X-ray DAP/dose summary
• DICOM interface (optional)
- Storage
- Printing
- Worklist
- Structured Radiation Dose Report (RDSR)
- MPPS- DVI-I connector (compatible with VGA and DVI-D analog signals)
- Fixed resolution of 1280 x 1024 pixels Image Processing
• 1K x 1K x 12-bit image processing
• Dynamic recursive filter with motion adaptation
- Allows the user to adjust noise filter levels for optimal image quality
- Ensures optimal image quality even with movement
• Automatic digital brightness and contrast control
• Manual digital brightness and contrast control
• Edge enhancement • Image negation mode
• Automatic image recording and saving
• Image swapping • Last frame hold (LIH)
• Zoom (up to 1600%) and image navigation
• Left-right flip
• Top-bottom flip
• Digital image rotation
- Real-time 360° rotation for dynamic and static images
- Image positioning without additional exposure
• Image annotation
- Laterality (Left/Right)
- Comments
• 15,000 Image Storage
• Exam Management
• Patient Information
- Exam List
- Personalized Patient Information
• X-ray Dose/Dose Display and Summary
• X-ray Dose/Dose Summary Export and Print
• DICOM Interface (Optional)
- Storage
- Print
- Worklist
- Structured Radiation Dose Report (RDSR)
- MPPS- DVI-I connector (compatible with VGA and DVI-D analog signals)
- Fixed resolution of 1280 x 1024 pixels Image Processing
• 1K x 1K x 12-bit image processing
• Dynamic recursive filter with motion adaptation
- Allows the user to adjust noise filter levels for optimal image quality
- Ensures optimal image quality even with movement
• Automatic digital brightness and contrast control
• Manual digital brightness and contrast control
• Edge enhancement
• Image negation mode
• Automatic image recording and saving
• Image swapping • Last frame hold (LIH)
• Zoom (up to 1600%) and image navigation
• Left-right flip
• Top-bottom flip
• Digital image rotation
- Real-time 360° rotation for dynamic and static images
- Image positioning without additional exposure
• Image annotation
- Laterality (Left/Right)
- Comments
• 15,000 Image Storage
• Exam Management
• Patient Information
- Exam List
- Personalized Patient Information
• X-ray Dose/Dose Display and Summary
• X-ray Dose/Dose Summary Export and Print
• DICOM Interface (Optional)
- Storage
- Print
- Worklist
- Structured Radiation Dose Report (RDSR)
- MPPS
