Fanuc, Genesis ARCMATE 100iC/12 6 Axis 12 kg

Axes: 6
Payload: 12 kg
Horizontal Reach: 1420 mm
Repeatability: ±0.08 mm
Robot Mass: 130 kg
Structure: Articulated
Mounting: Floor
Mounting: Inverted
Mounting: Angle

J1 Speed: 230°/s
J2 Speed: 225°/s
J3 Speed: 230°/s
J4 Speed: 430°/s
J5 Speed: 430°/s
J6 Speed: 630°/s

J1 Motion Range: ±360°
J2 Motion Range: ±250°
J3 Motion Range: ±445°
J4 Motion Range: ±380°
J5 Motion Range: ±380°
J6 Motion Range: ±720°

Application: Arc Welding
Application: Laser Welding
Application: MAG Welding
Application: MIG Welding
Application: Orbital Welding
Application: Oxyacetylene Welding
Application: Plasma Cutting
Application: Plasma Welding
Application: Submerged Arc Welding
Application: TIG Welding

Robot 1 Hours: 8004
Robot 2 Hours: 6957
Controller: 2 FANUC R-30iB
Teach Pendant: 2 FANUC Color Teach Pendants
Weld Power Supply: 2 Lincoln R500 PowerWave
Wire Feeders: 2 Lincoln 4R220
Torches: 2 Units

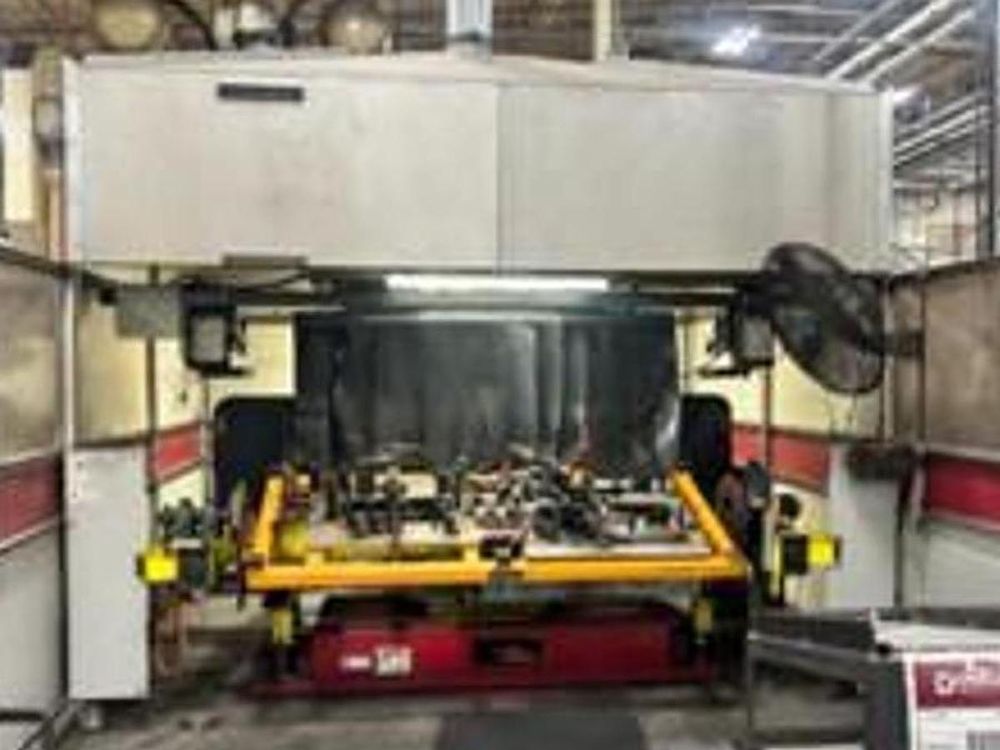

Fixture: Genesis Dual Trunnion
Fixture Capacity: 96" Length x 40" Swing
HMI: Allen Bradley PanelView 1000
Connection Cables: 2 Sets
Enclosure: Full Enclosure Included
