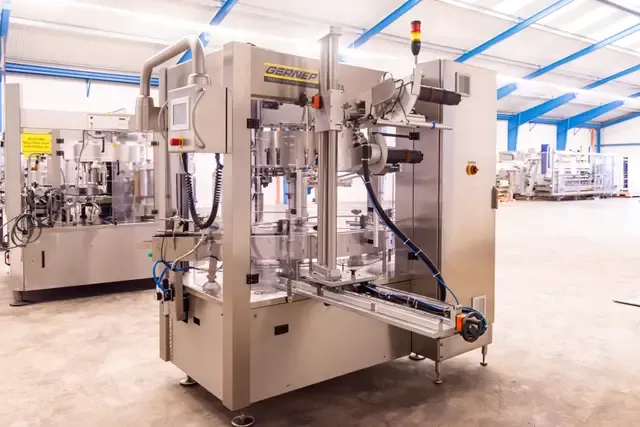

Gernep Soluta 6-480/2 1SK TaxU Self Adhesive Labeler

Direction of operation: RM
Capacity: approx. 2,500 bottles per hour
Speed range: approx. 800 – 3,000 bottles per hour
Labelling technology: Self-adhesive
Labelling station:

1 × self-adhesive labelling unit (HERMA)
Label speed: approx. 40 m/min
Roll diameter: 300 mm
Label height: up to 240 mm

Bottle Formats
Bottle types: Swing-top (bail closure) bottles, other bottles also possible

500 ml – Ø 66 × 280 mm
1,000 ml – Ø 85 × 316 mm

Label Data
Label dimensions: approx. 160 × 17 mm
Application type: U-seal label

Electrical Data
Control system: Siemens S7-1200
Operator panel: Sütron 7”
Power supply: 400 / 230 V
Frequency: 50 Hz

Equipment / Features
Alignment system for swing-top closures
Bottle orientation system in infeed star
Conveyor height: approx. 1,000 mm
Electrical cabinet lighting
Socket integrated in control cabinet.
