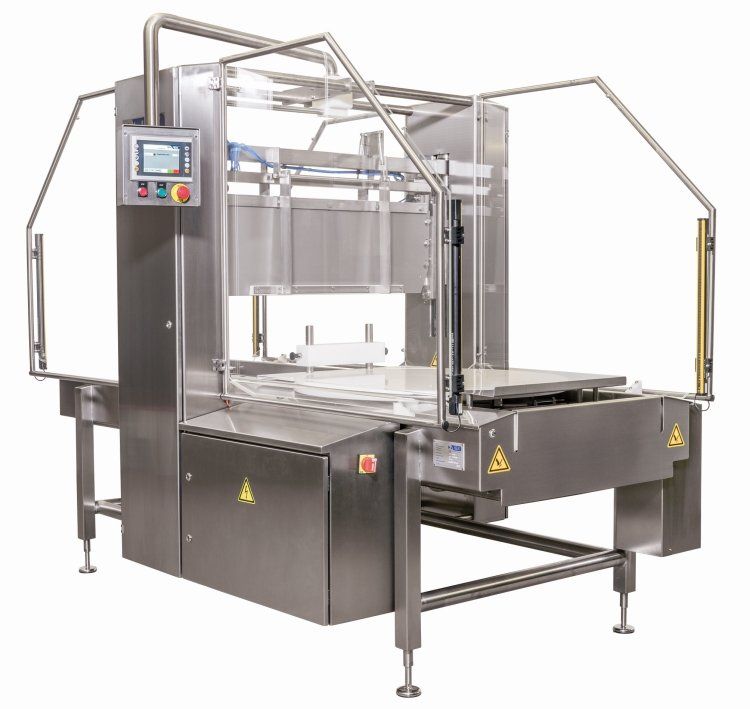

GES 1000

max. product dimension loaf:
diameter: 980 mm
height: 280 mm

max. product dimension: block
Length: up to 800 mm
Width: up to 800 mm
Height: up to 280 mm
(only possible with block cutting equipment)

Cutting mode:

1) Segments:
The automatic turn table is designed for fully automatic cutting of a cheese
loaf into segments (wedges).
Dividing: the used cutting principle allows only diagonal cutting of a cheese
loaf and so the dividing number is always an even number.

2) Cheese bars:
Cutting cheese bars out of block or cheese loaf.
(cutting of cheese blocks: block cutting equipment is needed)

3) Portion cutting:
The cut cheese bars must be turned by 90°and lay down on the cutting surface.
After this procedure the product is ready for portion cutting
(changing of the cutting width).

Machine configuration:

safety panels, machine coverings and the switch cabinet are
made of stainless steel 1.4301
the frames of the safety door made of stainless steel, 1.4301
with acrylic glass filling

base frame made of stainless steel. 1.4301

light sensor for front trim cut
cutting knife with openable hold down device

Technical data:

Machine dimensions:
Length: 2,750 mm
Width: 1,650 mm
Height: 2,150 mm
Working height: 875 mm
