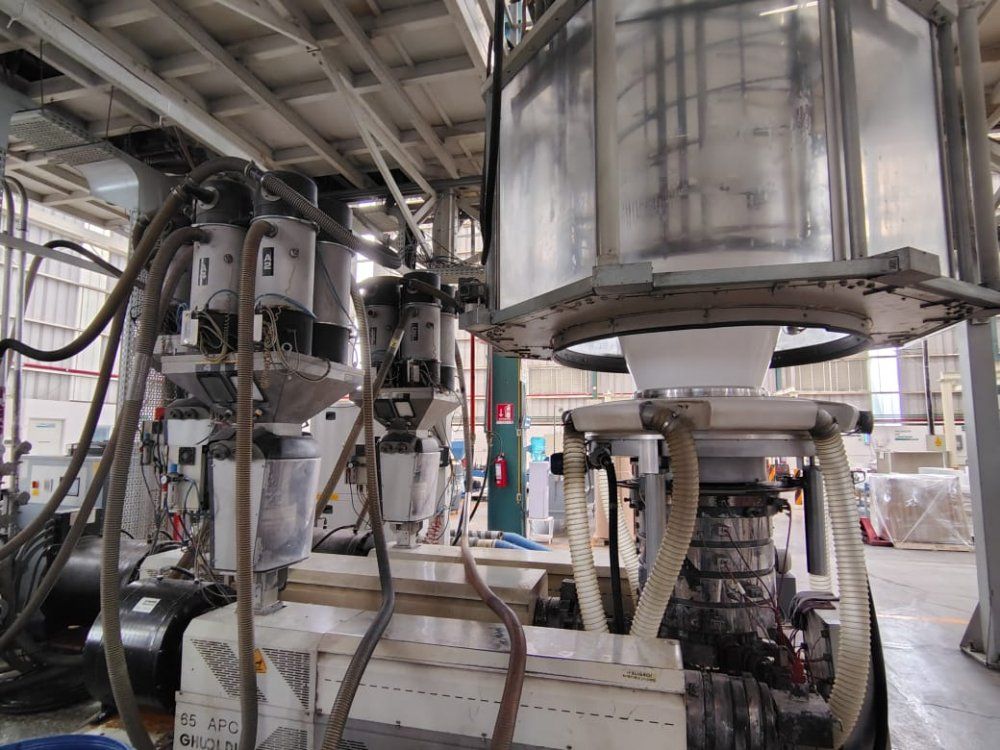

Ghioldi 3 layers Film blowing machine

Number of layers 3
Film structure ABC
Material LDPE, MDPE, LLDPE, PP
Film Width 2000
Output (Kg/h) 300kg/h

Extruder 1 Layer ref: A
Screw diam 1 65mm
Description 1 L/D 30, Bimetalic cylinder, AC Motor AC 68 Kw, DOTECO gravimetric dosers. 4 components

Extruder 2 Layer ref: B
Screw diam 2 80mm
Description 2 L/D 30, Bimetalic cylinder, AC Motor 120 Kw, DOTECO gravimetric dosers. 4 components

Extruder 3 Layer ref: C
Screw diam 3 65mm
Description 3 L/D 30, Bimetalic cylinder, AC Motor 68 Kw, DOTECO gravimetric dosers.
4 components

Head description “35 3F” for diez , die. gap 1.4 mm, IBC with ultra Sonic sensors,
Lever screen changers,Cooling ring PTS with height regulation
Die diam (mm) 400mn
Thickness controll system Automatic thickness control PTS with
KUNDIG measuring system
Bubble cage Motorized bubble cage with Teflon rolls
Take off unit Oscilating
Web guide Yes
Rewinder Type Double back to back
HMI with Touch Screen Film thickness: from 35 to 115 my Central and
lateral slitters Tower included
