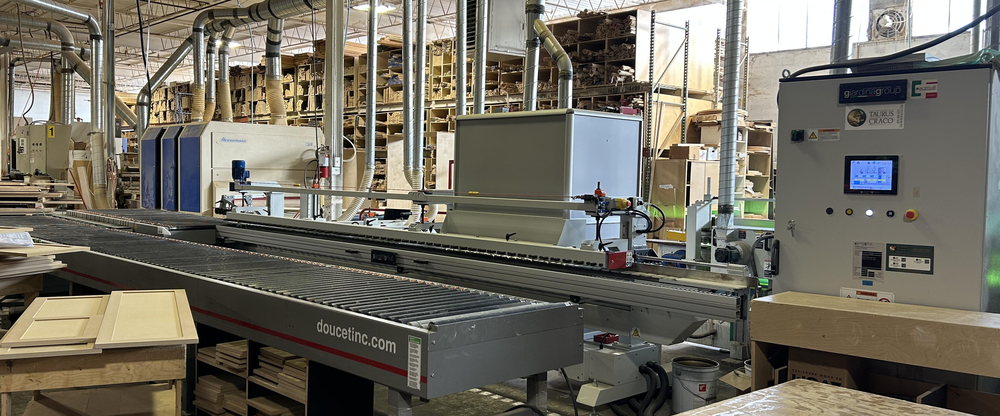

Giardina Destefani MVT 5000 w/ Doucet Return Conveyor

MVT 5.000
pos. 1 - TP L-M wheel unit with timed intervention (Milling UNIT)
pos. 2 - TP L-F wheel unit (Milling UNIT)
pos. 3 - AT belt unit
pos. 4 - AT belt unit
pos. 5 - SB wheel unit

TECHNICAL DATA:
Working side: 1 - single side machine
Processing: sanding
Min. length: 200 mm
Min. width: 50 mm
Max. Thickness: 100 mm
Variable feeding speed by inverter: from 5 to 25 m/min
Feed motor power (with inverter): 1.5 kW
Working height (+/- 30 mm): 900 mm
Total installed power: 8.5 kW
Voltage: 480 V (3 phases,60 Hz+NEUTRAL WIRE)
Machine colours: RAL 7035 light grey
Machine length: see drawing
Machine width: 1,700 mm
Machine height: 1,500 mm
Safety devices: CE
Compressed air feeding : 6 ÷ 8 Bar
Piece loading-Unloading: Manual
Extracted air consumption: 5,500 m³/h (at speed of 25 /sec)
Dust suction ports: Nr. 2 - Ø 120 mm & Nr. 5 - Ø 100 mm
