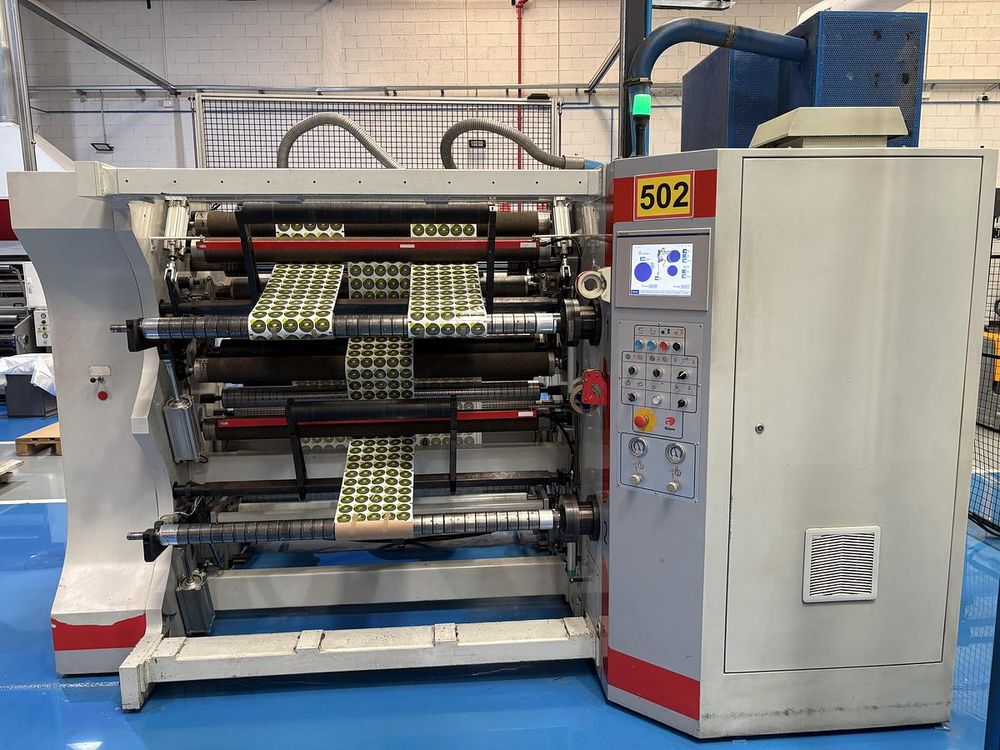

Giave RG 160 1300 1350 mm

Condition Used (visible in production)
Working width /material passage 1350 mm
Max. finished reel width 1300 mm
Minimum cutting width 40 mm
Max. Original reel diameter 1000 mm
Max finished reels diameter 600 mm
Unwinding unit single station
Rewinding unit double station with motor
Maximum speed 600 m/min
Inner core diameter 76 mm
Materials:
Polypropylene from 18 to 50 µm
Polyamides Min. 15 µm
HDPE/LDPE Min. 20 µm
Polyester Min. 12 µm
Papers and composites up to 100 g/m²

Cutting system 9 circular blades | 12 razor blades
Additional information FIFE DP-20 Web Guide Controller | FIFE Actuators | Rexroth display
Electrical supply 400 V (Three-phase + Ground) 50 Hz | Installed power 30,4 C.V. (22,37 Kw) | Absorbed power 21,2 C.V. (15,6 Kw)
Pneumatic supply Min. pressure: 6,5 bar (Kg/cm2) – Max. pressure 8 bar (Kg/cm2)
General dimensions (approx.):
Max. width: 3215 mm
Max height: 2366 mm
Max. lenght: 2351 mm
Machine colour White RAL 7035
