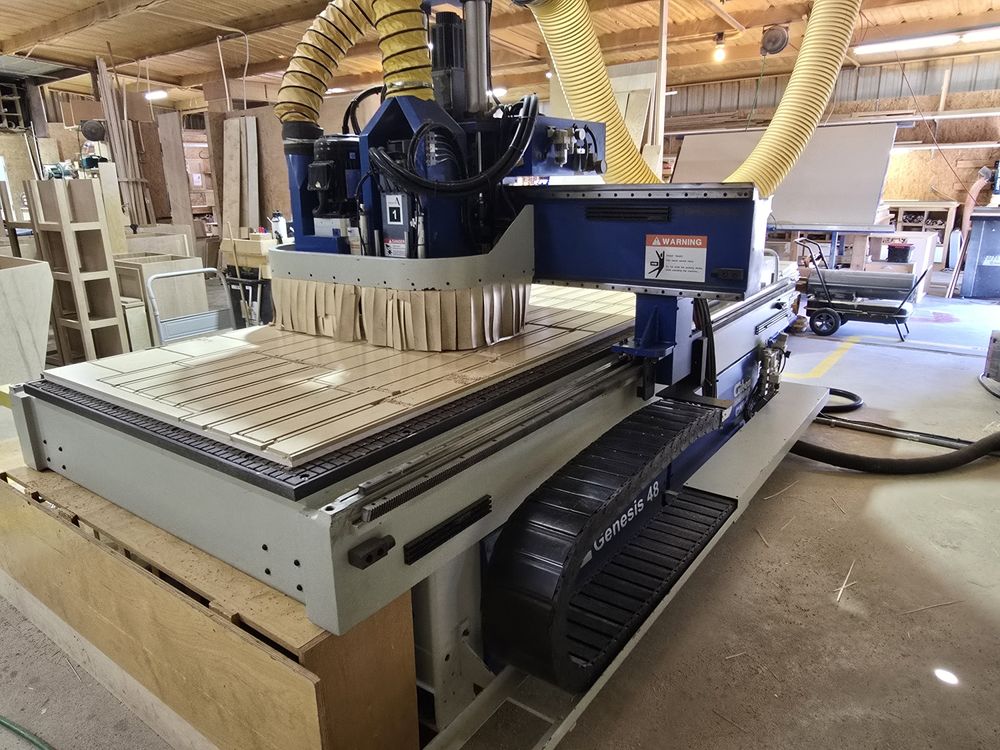

Giben G2 Genesis 48

Feed Rate:
X Axis ~ 60 m/min
Y Axis ~ 60 m/min
Z Axis ~ 20 m/min
One 12 Hp ANDI HSK-63F air cooled spindle, 24,000 RPM
5 x 5 vertical drilling
SYNTEC CNC Controller with independent cabinet and remote hand wheel
One 10 Hp Becker vacuum pump
Touch off function fixed on the table
Helical rack direct drive ~ not belt driven
208-240-480 volt / 3 ph / 60 Hz
Table size 2500 mm x 1300 mm
One suction zone to accept 4x 8 panel
Working stroke: X 2635 mm ~ Y 1600 mm ~ Z 200 mm
Six tool pick up station 6 tool holders and 12 collets (rack)
