Giddings & Lewis 360 NC Power Rotary Table

Ref : 23421
Condition : Used
Manufacturer : Giddings & Lewis
Model : 360 NC
Type : Power Rotary Table
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 06 Oct. 2020

Reference #23421

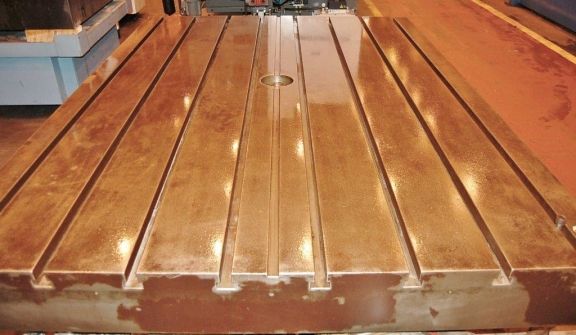

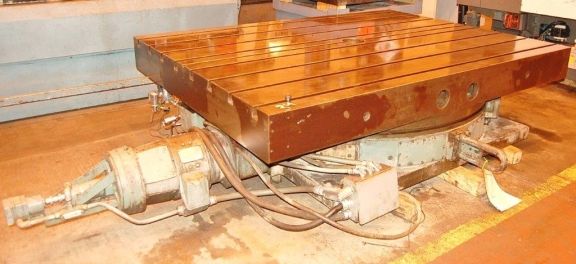

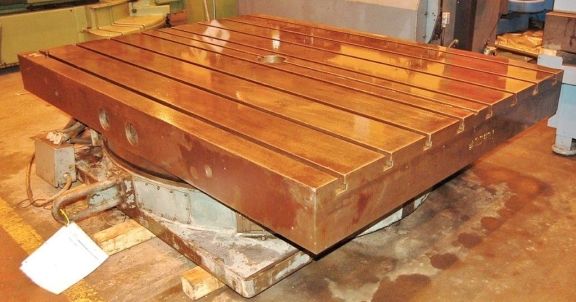

72" x 96" Giddings & Lewis 360 NC Power Rotary Table
Age: 1969
Serial No. 040-1247-69

Table Size ............................ 72" x 96"
Work Height ........................... 22.5"
Number Of T-Slots ..................... 8
Width Of T-Slots, Top ................. 1"
Width Of T-Slots, Bottom .............. 1-3/4"
Depth Of T-Slots, Overall ............. 2"
Distance Between T-Slot Centers ....... 9"
Center Keyway Width ................... 1"
Center Bore Diameter .................. 6"
Approx. Maximum Load Capacity ......... 25,000 Lbs
Table Base Dimensions ................. 137" x 96"
Approximate Shipping Weight ........... 13,500 Lbs

EQUIPPED WITH:
360 Degree Scale With 1/2 Degree Increments
Hydraulic Clamping
2 HP Main Motor (180 Volt DC)
