Giddings & Lewis C Right Angle Milling Attachment
Ref :
23497
Condition :
Used
Manufacturer :
Giddings & Lewis
Model :
C
Type :
Right Angle Milling Attachment
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Last check :
06 Oct. 2020
Reference #23497

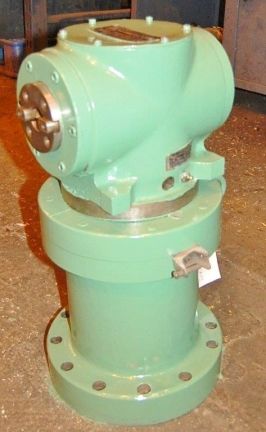

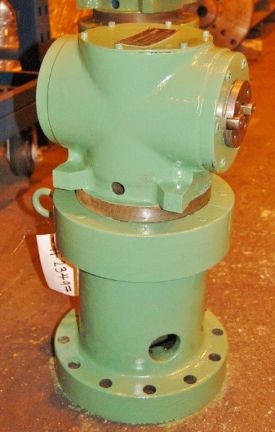

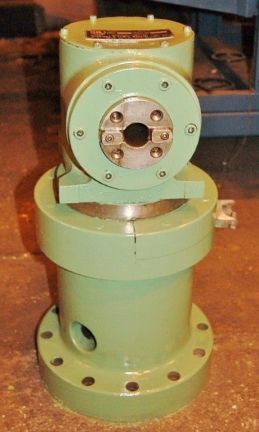

Giddings & Lewis 3" Right Angle Milling Attachment
CAPACITY:
Spindle Taper ......................... #4MT
Driver Diameter ....................... 3.5"
Maximum Reach to Spindle Centerline ... 18"
Height ................................ 11.5"
Width ................................. 7"
Length ................................ 21.5"
Number of Bolt Holes .................. 11
Flange Diameter ....................... 12
EQUIPPED WITH:
360 degree Swivel
Lifting Lug
