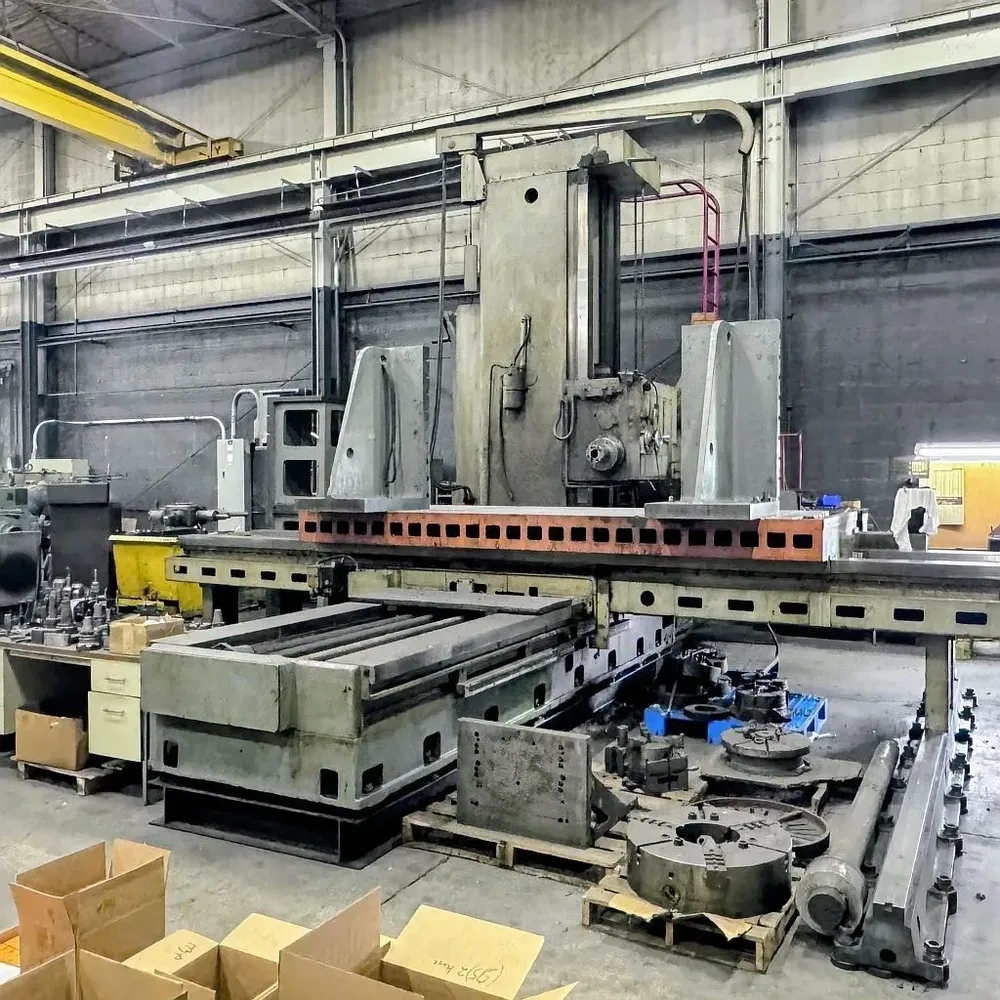

Giddings & Lewis H6T 152.4 mm 1020 RPM

X-axis travel: 3658 mm
Y-axis travel: 3048 mm

Spindle travel: 915 mm
Spindle diameter: 152.4 mm
Spindle taper: ASA No. 7
Spindle speed: 5.6–1020 RPM
Spindle drive motor: 30 HP
Spindle feeds: 0.0007–0.250 in/rev
Milling feeds: 0.012–120 in/min
Thread leads: 1, 11⁄2, 2, 3, 4, 6, 8, 12, 16, 24, 32, 48
Table size: 1524 × 3708 mm
Table cross travel: 3050 mm
Bed length: 3050 mm
Saddle travel: 2438.4 mm
Bed width over ways: 1320 mm
Bed way width: 254 mm
Saddle width over ways: 1065 mm
Saddle way width: 190 mm
Saddle bearing length: 1370 mm
Column width over ways: 1105 mm
Column way widths: 127 mm / 108 mm / 108 mm
Column cross section: 1105 × 1120 mm
Milling feed motor: 10 HP
110 V control circuit
Fan-cooled enclosed motors
Reversing starter
Pendant control
Machine weight: 33800 kg
