Giddings & Lewis Hydrostatic Rotary Table
AMERICA North (USA-Canada-Mexico)
Reference # 23419

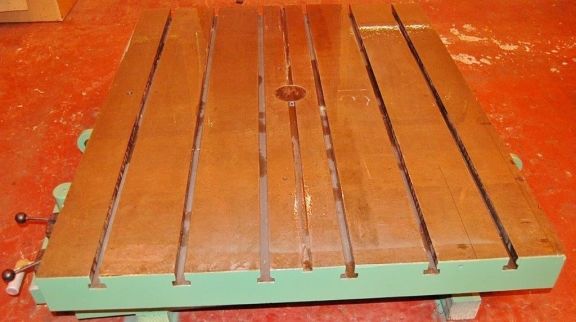

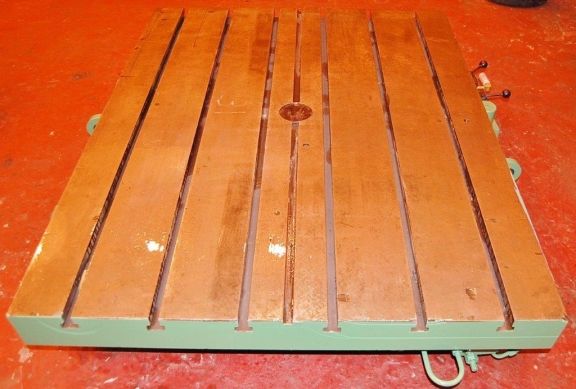

48" x 60" Giddings & Lewis Hydrostatic Index Table
Serial No. 40-1673-78
Age: 1978
Table Size ............................ 48" x 60"
Work Height ........................... 12"
Number Of T-Slots ..................... 4
Width Of T-Slots, Top ................. 13/16"
Width Of T-Slots, Bottom .............. 1 1/2"
Depth Of T-Slots, Overall ............. 1 5/8"
Distance Between T-Slot Centers ....... 7 1/2"
Center Keyway Width ................... 13/16"
Center Bore Diameter .................. 4 1/4"
Shot Pin Locations (degrees) .......... 90,180,270,360
Table Base Dimensions ................. 62" x 60"
Table Weight Capacity ................. 15,000 Lbs
Approximate Shipping Weight ........... 6,000 Lbs
EQUIPPED WITH:
Air Clamp
Hydrostatic Lift
4-Position, Positive Stop Shot Pin
360 Degree Scale with 1/2 Degree Increments
Fixture Locating Keyway Degree Increments
Fixture Locating Keyway
Center Bore In Table Platen
