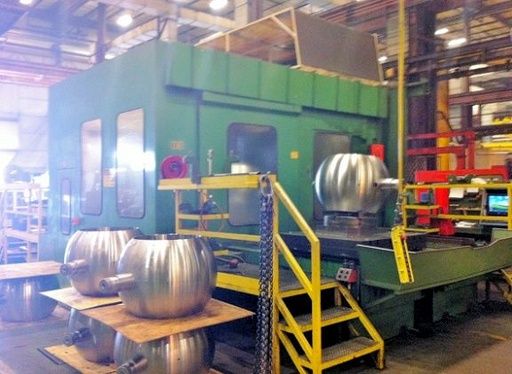

Giddings & Lewis MC-60 6" spindle diameter 2500 RPM

GIDDINGS & LEWIS MC-60
1993

6" spindle diameter
#50 ANSI taper
72" X-axis travel
54" Y-axis head travel above pallets
72" Y-axis headstock vertical travel
36" Z-axis spindle travel
85" W-axis saddle travel
(2) 48" x 48" pallets with shuttle system
15,000 lbs table weight capacity
360,000° B-axis rotation
12 – 2500 RPM spindle speed
50 HP spindle motor
0.1 – 100 IPM feed rate
450 IPM rapid traverse (X & Y)
300 IPM rapid traverse (W & Z)
460V / 3PH / 60HZ power

Built-in rotary table
25,000 lbs rotary table capacity
360,000 positions
30,000 ft-lbs torque
±5 arcsec accuracy
±1.5 arcsec repeatability
1 RPM rotational speed
450 IPM traverse rate (X-axis)
0.010 – 150 IPM feed range (X-axis)

Giddings & Lewis 8000B CNC control
Auxiliary handheld pendant
Single point threading
Tool probe for tool setting
Thermal compensation (Z-axis)
Vertically adjustable pendant
In-process gauging system
Software for CH-8 facing head (head not included)
Collet-type draw bar
Lubri-Cool hydraulic cooling system
High-pressure coolant thru spindle: 60 PSI, 10–12 GPM
Flood coolant and air blast for tool change
Hardened ways on all axes
Way covers on all axes
Full chip and splash enclosure
Chip conveyor with elevator
Inspect under power in Southern plant
Major price reduction
Video available online
