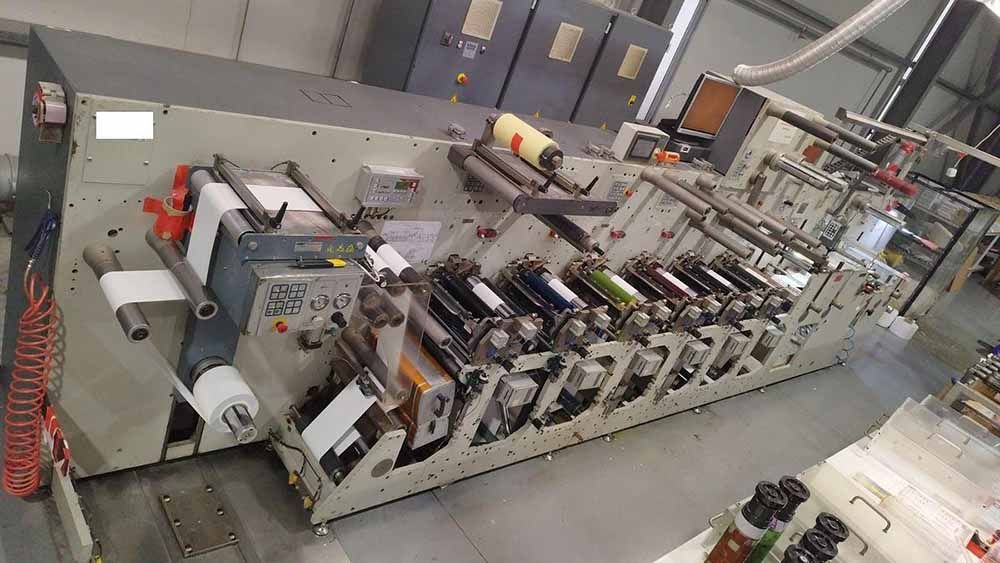

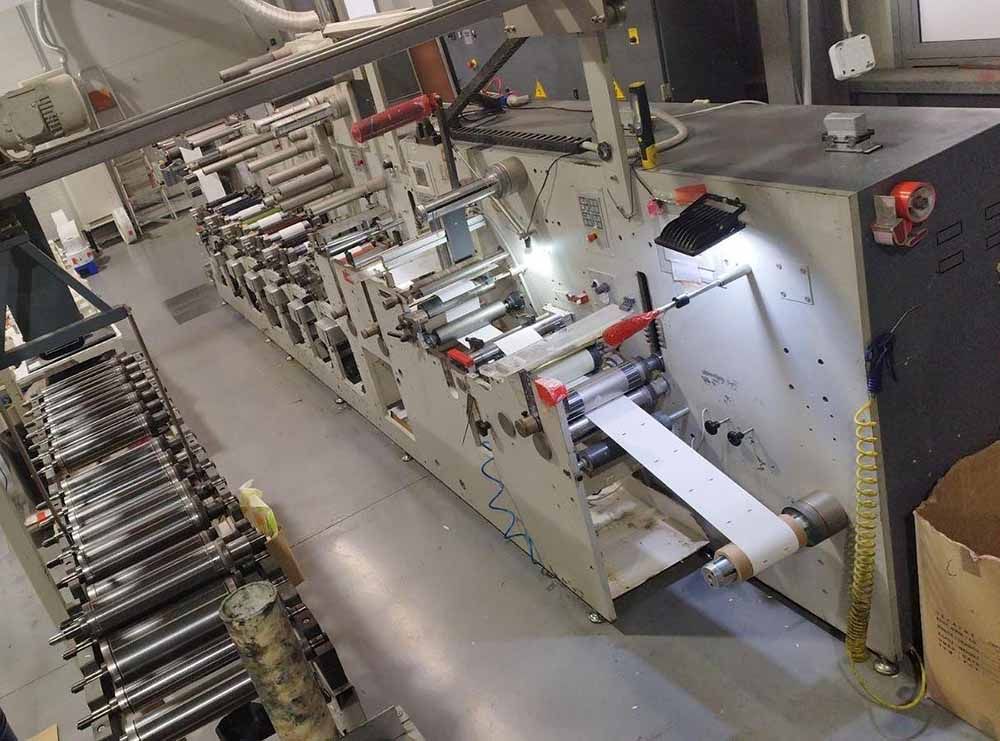

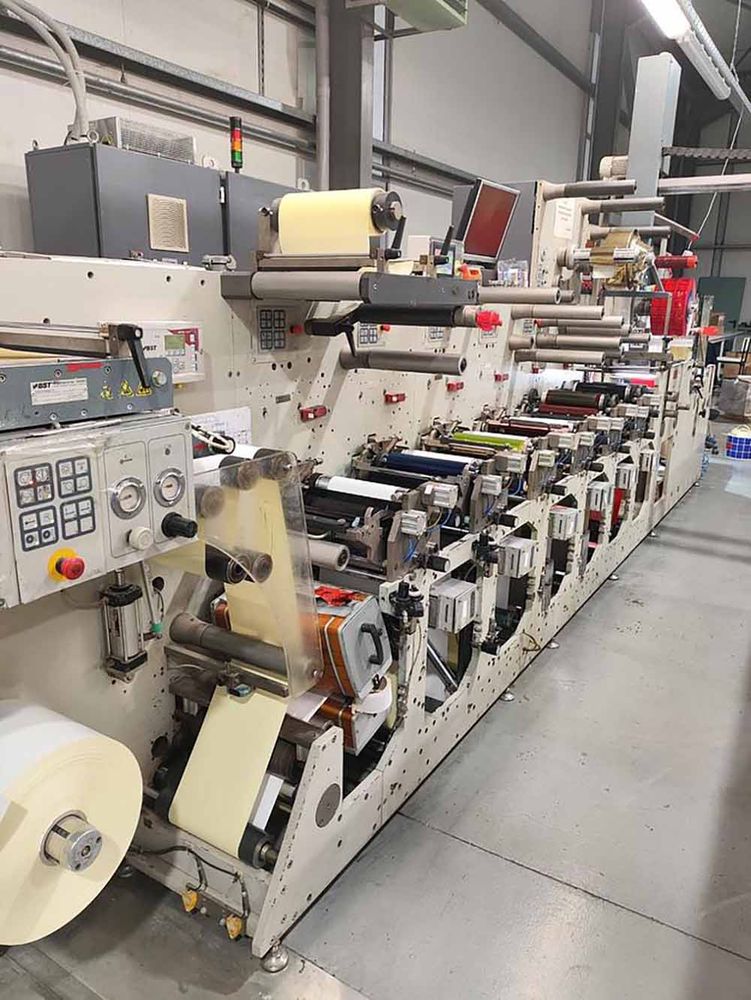

Gidue 290 6 280mm

UV Flexo Label press
Max. format: 280mm / 11″
Min. format: 110mm / 4″
6 Flexo Printing Units

Printing on Adhesive
Printing on Liner

Antistatic Unit
Hot and Cold Foil
Web Turn Camera with 2 monitors
3 Die Cutters with Roll Elevator
Unwinder 1016mm / 40″ with lift
Rewinder 900mm / 35″
Ceramic anilox rollers
6 Ink Tanks + 7 additional
6 Ink Rollers (for transfer) + 9 additional
6 Doctor Blade Systems + 4 additional

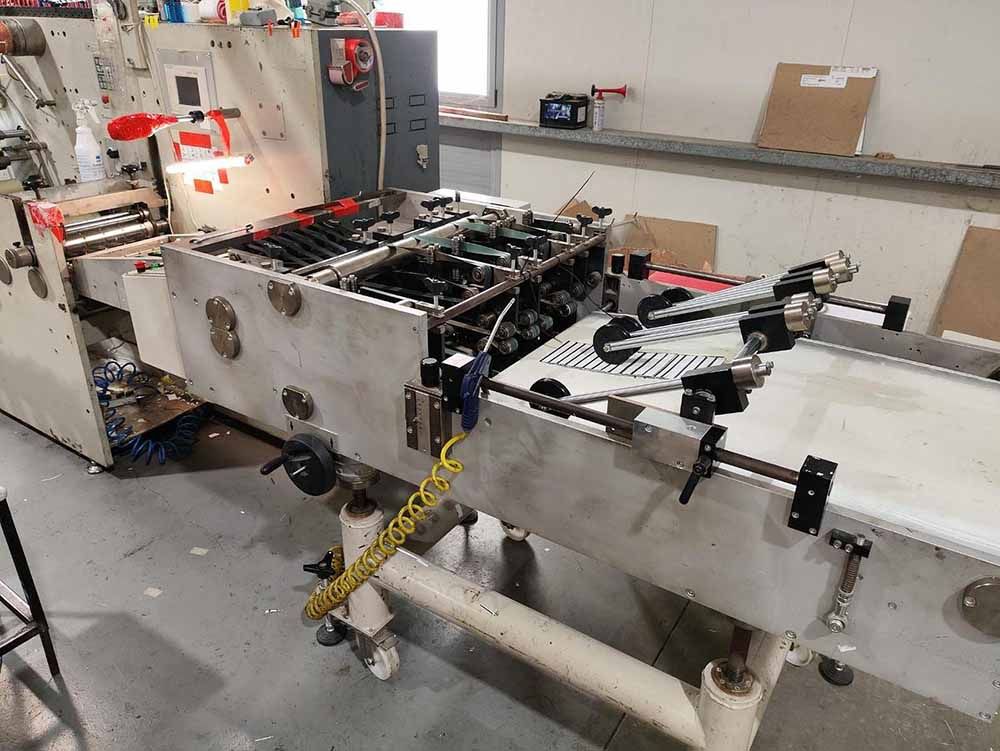

Die Cut Cylinders for sheeter: 1 Z96 with 8 Repetitions + 1 Z96 with 12 repetitions
2 Laminating Cylinders Z100
6 UV Lamps on board
Technical details:
Flexoplate thickness 1.14mm / 0.045″
Substrate thickness 0.38mm / 0.015″

Printing Cylinders:
Z68 x6
Z73 x6
Z76 x8
Z80 x8
Z83 x6
Z86 x6
Z88 x6
Z93 x6
Z96 x8
Z101 x6
Z104 x6
Z110 x6
Z120 x6
Z128 x6
Z134 x6
Z144 x6
Z155 x8

Die Cut cylinders:
Z68 x3
Z73 x2
Z76 x1
Z80 x2
Z83 x1
Z86 x1
Z88 x1
Z93 x1
Z96 x2
Z101 x1
Z104 x1
Z110 x1
Z120 x1
Z128 x1
Z134 x1
Z144 x1
Z155 x1

Anilox Rollers:
450-7 x3
400-9 x1
660-5 x1
800-4 x2
350-9 x1
400-8 x2
550-6 x1
800-5 x1
800-3.5 x5
800-4.5 x1
1200-2.5 x3
200-20 x1
300-10 x2
350-10 x1
