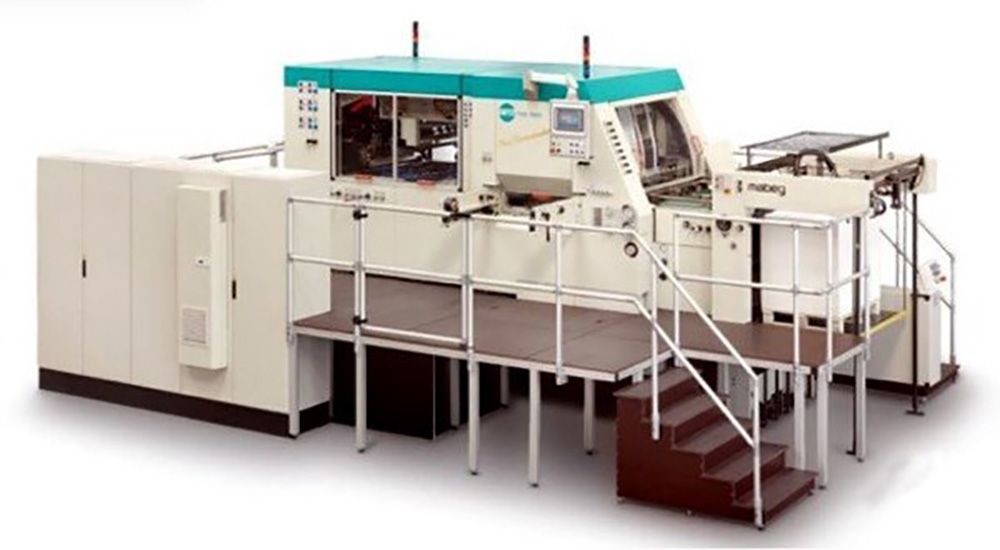

Gietz FSA 1060 Foil Commander

– Sheet format max. 1060 x 760 mm
– Sheet format min. 460 x 350 mm
– Material thickness :
max. 2 mm
min. approx. 80 gsm
– Stamping area max. 1030 x 730
– Sheet – Gripper margin 8 – 12 mm
– Heating zones, individually controllable 16
– Temperature adjustable up to 170 °C
– Pressure of the press max. 350 ton
– Heating capacity 24 kW
– Speed max 7’500 strokes/h
– 3 Longitudinal foil feeds
– 2 transverse foil feeds
– Mabeg Sheet Feeder
– 2 Honeycomb chases
