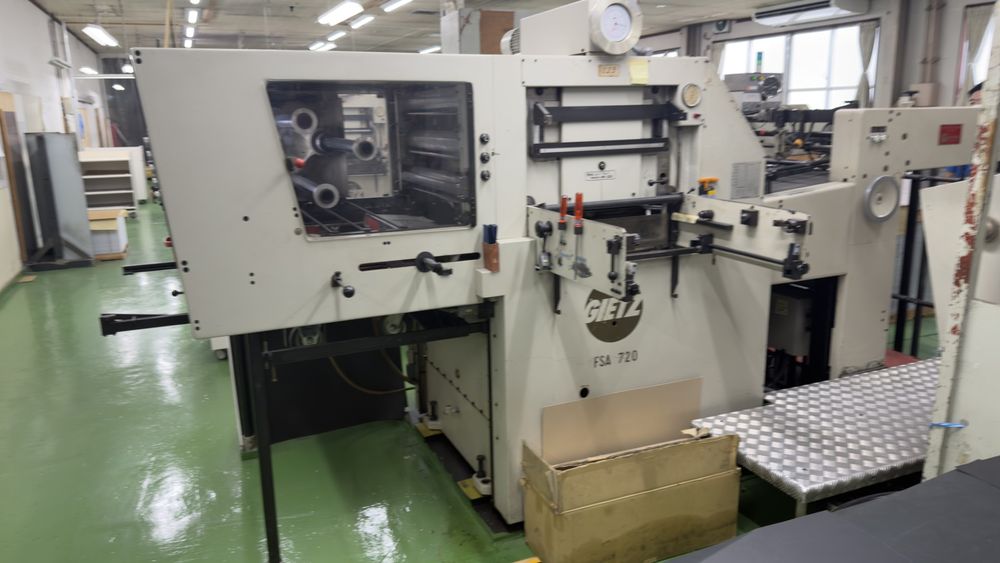

Gietz FSA-720 Hot foil stamping and embossing press

General Specifications :
Feature Specification :
Maximum Sheet Size 720 x 520 mm
Minimum Sheet Size 297 x 210 mm
Maximum Operating Speed 5,000 sheets per hour (sph)
Maximum Stamping Pressure 120 tonnes
Maximum Paper Thickness Approx. 0.5 mm

Feeder & Delivery Systems :
Feeder Type: Non-stop stream feeder
Maximum Feeder Pile Height: 950 mm
Maximum Delivery Pile Height: 700 mm
Double Sheet Detection: Equipped as standard

Foil & Heating System:
Foil Pulls: 3 x longitudinal foil unwinding devices
Heating Zones: 3 independently controlled heating zones
Programmable Foil Advance: Yes

Physical Dimensions:
Approximate Footprint (L x W x H): 4.3 m x 3.6 m x 1.9 m
Total Power Requirement: ~34 kW
Total Machine Weight: ~7.0 tons (approx. 7,000 kg)
