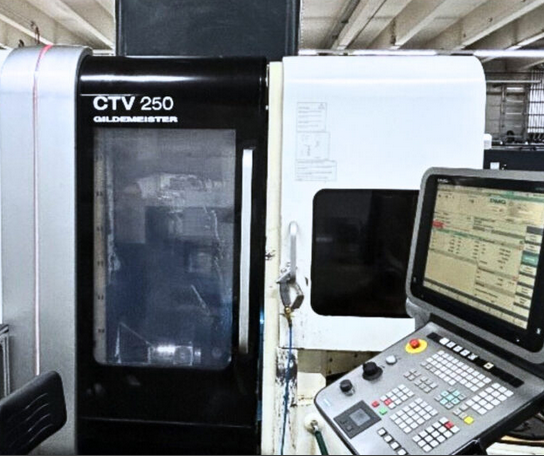

Gildemeister CTV 250 Turning length: 160 mm

X-axis travel: 725 mm
Y-axis travel: ±50 mm
Z-axis travel: 300 mm
Max. turning diameter: Ø250 mm
Swing over bed: Ø320 mm
CNC controller: Siemens Sinumerik 840D-Ergoline
Tool magazine places: 16
Tool holder: VDI-30
Max. tool length: 390 mm
Max. tool diameter: 140 mm
Lower turret tool slots: 12
Driven tool speed: 4,000 rpm
Driven tool power: 11.7 kW
Milling function: Yes
Main spindle speed: 5,000 rpm
Main spindle power: 11.7 kW (40% ED)
Max. torque: 280 / 360 Nm (100% / 40% ED)
Coolant tank capacity: 980 L
Coolant pressure: 8 / 20 bar
Chip conveyor
CE conformity
Coolant gun
Air blast / coolant switch-over
Internal coolant supply
Paper band filter
Automatic workpiece magazine loader: 16 positions x Ø220 mm
Under power: 38,000 h
Cutting time: 26,000 h
Machine length: 3,171 mm
Machine width: 4,254 mm
Machine height: 2,648 mm
Machine weight: 6,000 kg
