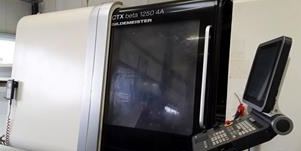

Gildemeister DMG 4000 rpm CTX beta 1250 4 A 3 Axis

Gildemeister CTX beta 1250 4 A
Year: 2011

Travel X/Y/Z: 270 x 120 x 1200 mm
Turning length: 1135 mm
Maximum turning diameter: 700 mm
Maximum swing diameter: 340 mm
Maximum torque: 680 Nm
Spindle speed range: 0–4000 rpm
Control: DMG
Powered tools: 50
Scraper chip conveyor
Short bar loader magazine IRCO ILS-RBK 100/16
Various main spindle reduction sleeves
NC-controlled workpiece removal device
Conveyor belt for workpiece removal
Coolant system 8/20 bar with immersion cooler
Coolant spray gun
Chip conveyor
Oil mist extraction system
Control cabinet cooling unit (up to 40 °C)
4-color signal light
Connection for bar loader magazine
Main spindle: Integrated spindle motor ISM 102
Counter spindle: Integrated spindle motor ISM 76
Easy-Tool Monitor
Approx. 40 various quick-change collets size 100
Pneumatic changeover device Ø 100 mm
Approx. 50 various tool holders, static and driven
Installation elements
Documentation
