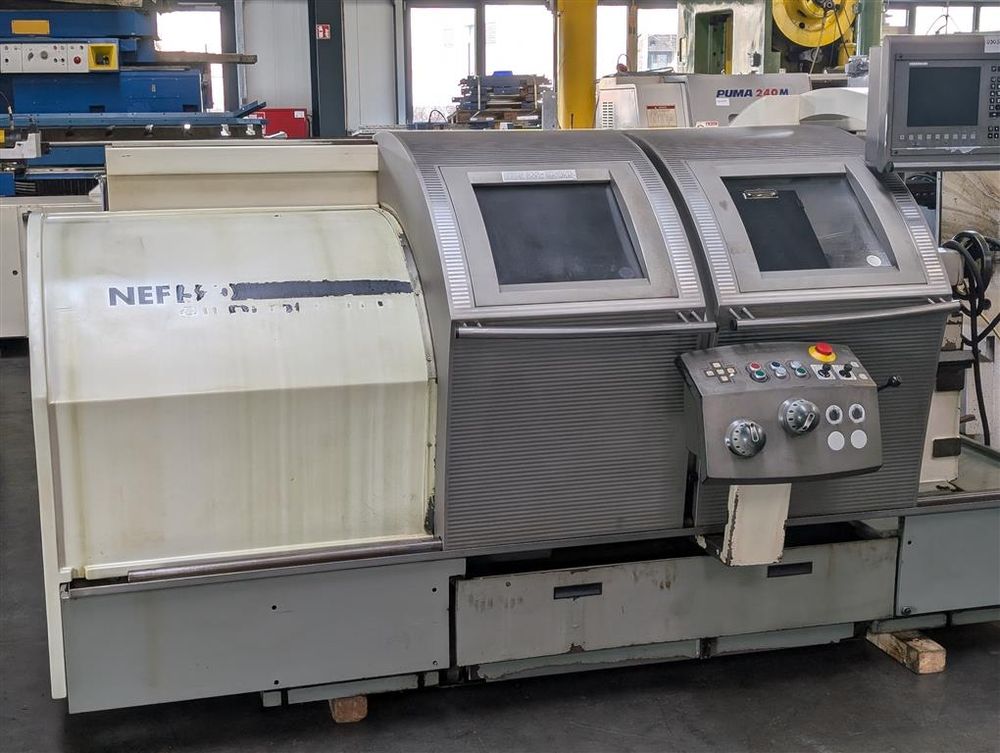

Gildemeister Manuaplus 4110 3000 rpm NEF 520 2 Axis

GILDEMEISTER NEF 520
2006

Turning diameter over bed: 500 mm
Turning diameter over slide: 290 mm
Turning length: 850 mm
Centre distance: 850 mm
Z-axis travel: 900 mm
X-axis travel: 260 mm
Control: Manuaplus 4110
Spindle speed: 10–3000 rpm
Spindle torque: 920 Nm
Spindle bore: 70 mm
X-axis rapid traverse: 8 m/min
Z-axis rapid traverse: 10 m/min
Idle run hours: approx. 34,600 h
Tailstock taper: MK 5
Tailstock quill stroke: 180 mm
Total power requirement: 24 kVA
Machine weight: approx. 5.2 t
Machine dimensions: 2.2 × 3.2 × 1.9 m
Multifix steel holder size C
3-jaw chuck Ø 250 mm
Chip tray
Manual hour counter
Live center in tailstock
Operation control panel and monitor
4-jaw chuck Ø 250 mm with internal jaws
Chuck keys
Machine lighting
8 foot plates
4 wedge lifters
Various pairs of jaws
Bezel Ø 100 mm closed
