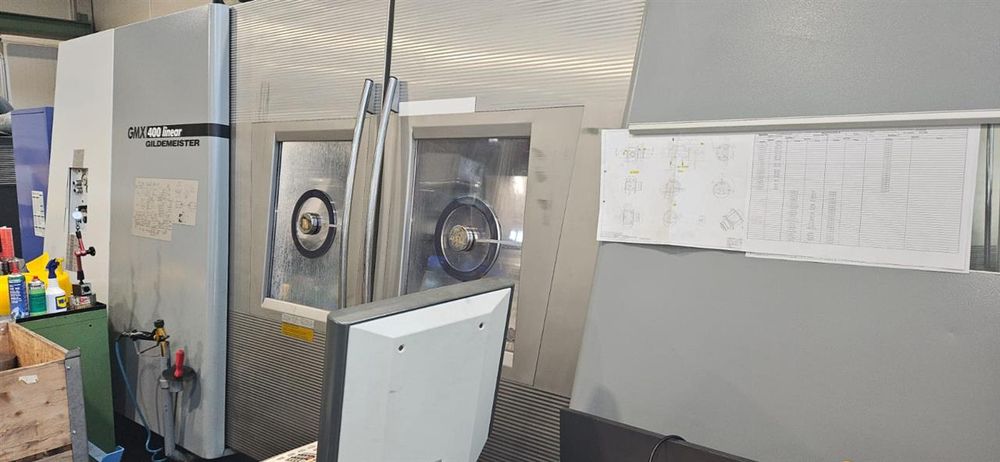

Gildemeister Siemens 840 D Powerline CNC control 4000 1/min GMX 400 Linear 5-Axis CNC Turning and Milling Center 3 Axis

Turning diameter: 640 / 400 mm
Turning length: 1500 mm
Turret 1 travel X/Y/Z: 550 / 180 (±90) / 1585 mm
Swivel angle milling spindle (B-axis): ±120° interpolated
Rapid traverse feeds turret 1 (X/Y/Z): 40 / 24 / 60 m/min
Milling spindle RPM: 12,000 1/min
Milling spindle power: 12 / 23 kW
Milling spindle torque: 100 Nm
Tool magazine turret 1 (HSK-A 63): 120 positions
Tool change time turret 1: 1.6 s
Spindle 1 RPM: 4000 1/min
Spindle 1 power: 36 / 45 kW
Spindle 1 torque: 730 Nm
Spindle 1 max bar diameter: 90 mm
Spindle 2 RPM: 4000 1/min
Spindle 2 power: 36 / 45 kW
Spindle 2 torque: 730 Nm
Spindle 2 max bar diameter: 90 mm
C-axis resolution: 0.001°
Tailstock function for spindle 2
Turret 2 travel X: 225 mm
Turret 2 travel Z: 1595 mm
Power rotary tools turret 2: kW (value not provided)
Rotary tools turret 2 RPM: 4000 1/min
Number of tools in turret 2: 12 VDI 40
High-pressure pump: 20 bar
Total power requirement: 110 kVA
Machine weight: 24 t
Machine dimensions: 9.3 x 4.6 x 3.1 m

Tool magazine with 120 HSK-A 63 tools
Coolant system with 1000 L tank and 4 kW pump
Differential pressure clamping system on both spindles
Steadyrest for lower turret dia 8-101 mm
Parts gripper for turret 2 with 3-jaw chuck for max 140 mm diameter parts
Conveyor belt for finished parts
Preparation for 3D probe
Automatic chip conveyor
Automatic door
