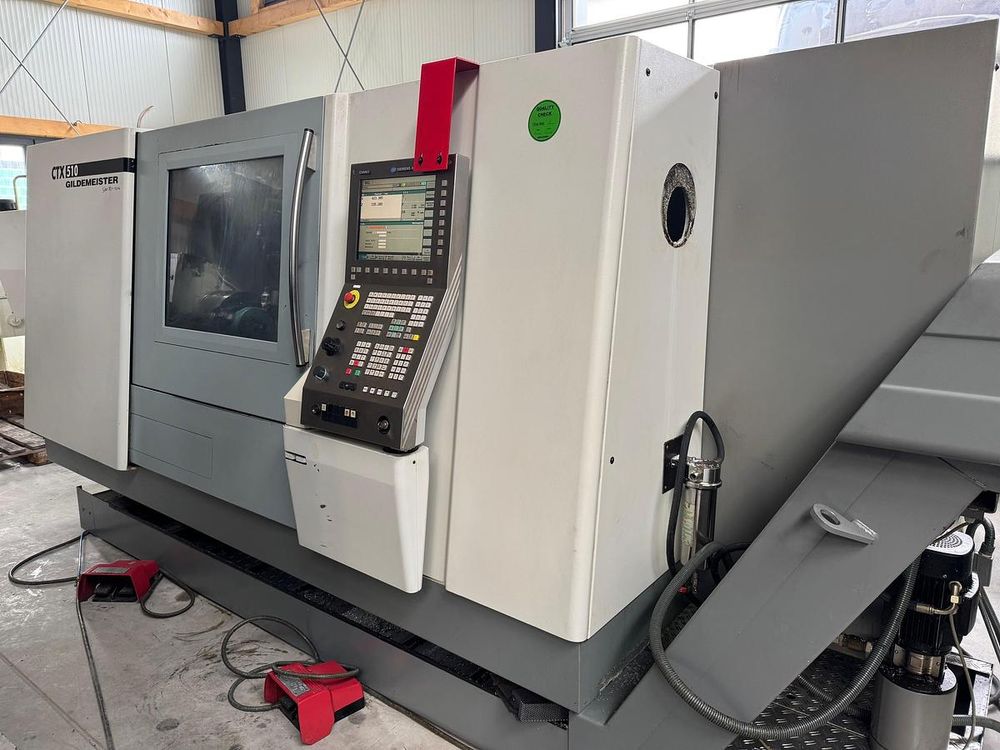

Gildemeister SIEMENS 840 D ShopTurn 3500 rpm CTX 510 V3 3 Axis

X travel: 300 mm
Z travel: 1050 mm
C axis: 360°
Rapid traverse X: 30 m/min
Rapid traverse Z: 30 m/min
CNC control: SIEMENS 840 D ShopTurn
Turning diameter: 465 mm
Turning length: 1050 mm
Swing diameter: 680 mm
Spindle speed: max. 3500 rpm
Spindle drive power: 33 kW
Max. torque: 630 Nm
Spindle bearing diameter: 120 mm
Spindle bore: 100 mm
Max. bar diameter: 90 mm
Chuck: SCHUNK ROTA THW PLUS 315, diameter 315 mm
Tool turret positions: 12
Tool holder: VDI 40
Driven tool stations: 12
Driven tool speed: max. 4000 rpm
Driven tool power: 8.4 kW
Driven tool torque: 20 Nm
Tailstock travel: 850 mm
Quill stroke: 150 mm
Tailstock holder: MK 5
Operating hours: 40115 h
Spindle hours: 11974 h
Total power requirement: 50 kVA
Machine weight: approx. 7.5 t
Space required: 6.5 x 3.0 x 2.2 m
