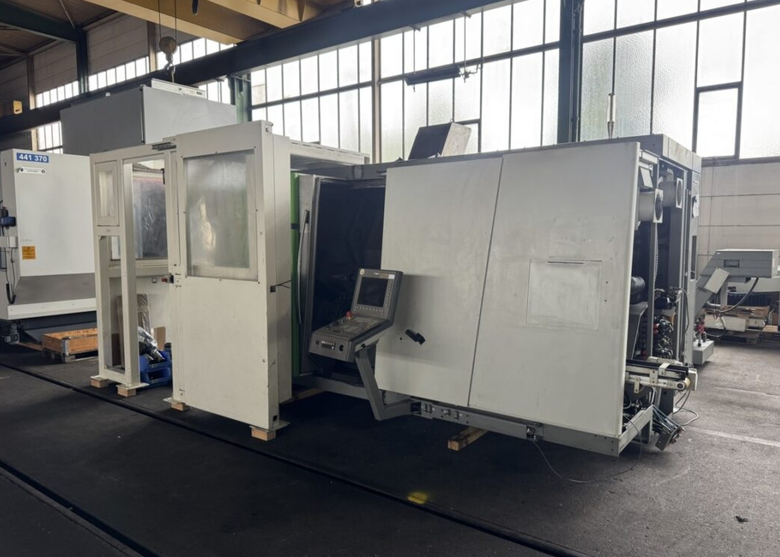

Gildemeister SINUMERIK 840D 12,000 rpm GMX 250 LINEAR 3 Axis

X-Axis Travel: 550 mm
Z-Axis Travel: 1185 mm
B-Axis: 240°
Control: SINUMERIK 840D
Main Spindle
Counter Spindle
C-Axis
Turning Diameter: 640 mm
Swing Diameter: 640 mm
Turning Length: 1185 mm
Distance Between Spindles: 1500 mm
Milling Spindle Speed: 10–12,000 rpm
Spindle Motor Power (100% ED): 13.2 kW
Spindle Motor Power (40% ED): 22 kW
X-Axis Feed Rate: 0–40,000 mm/min
Y-Axis Feed Rate: 1–24,000 mm/min
Z-Axis Feed Rate: 1–70,000 mm/min
Rapid Traverse X/Y/Z: 40/24/70 m/min
Tool Holder: HSK63
Chip Conveyor
Dust Extraction System
DMG Automation WH10top
Main Spindle Hollow Clamping Device
Main Spindle 3-Jaw Hydraulic Chuck
Counter Spindle Closed Center Clamping Device
Counter Spindle 3-Jaw Hydraulic Chuck
Automatic Protective Cover
Differential Pressure Clamps
Coolant Pump 1: 17 l/min at 80 bar
Coolant Pump 2: 20 l/min at 8 bar
Coolant Pump 3: 40 l/min at 20 bar
Hainbuch Collet Chuck
Collets: Ø30, Ø45, Ø50, Ø55, Ø60, Ø65, Ø72, Ø82, Ø85, Ø90 mm
Workpiece Pick-Up Gripper for Turret
