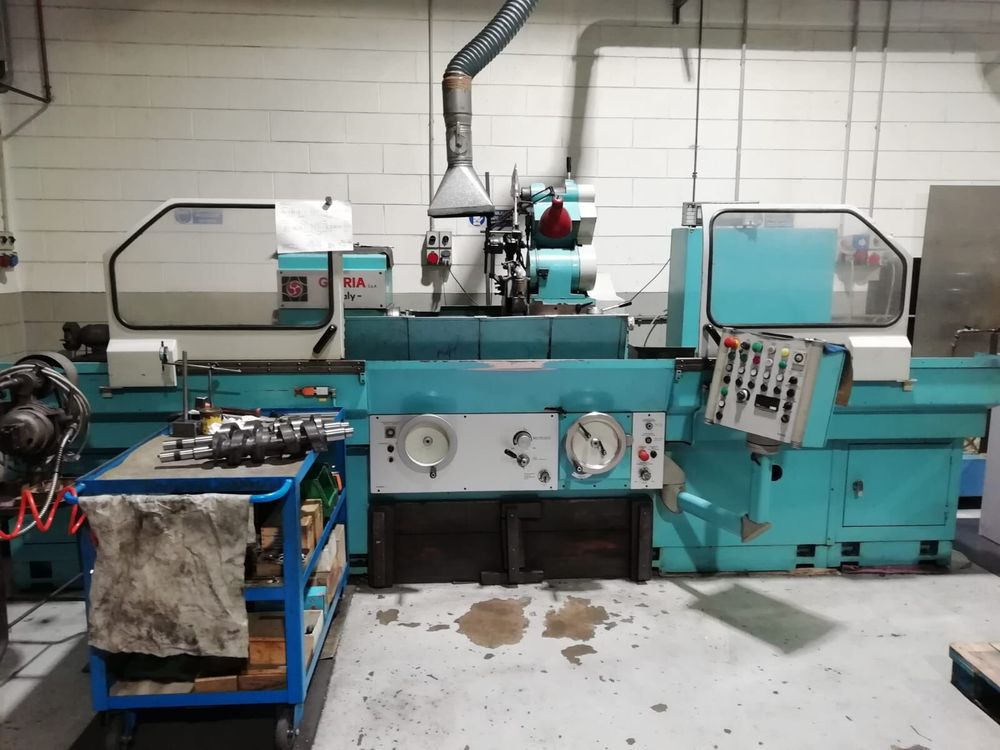

Gioria RH/N 1000

ID/OD Grinding Machine
Centers distance: 1000 mm
Centers height: 200 mm
Longitudinal travel (Z): 1000 mm
Max grinding diameter: 390 mm
Table stroke: 1145 mm
Table tiltable: ±7°
External spindle power: 5.5 kW
External spindle speed: 1420/1650 rpm
Right wheel band thickness: 60 mm
Right wheel max diameter: 406 mm
Right wheel hole diameter: 127 mm
Workpiece head taper: 4 cm
Workpiece head tiltable: ±90°
Closed steadies: Yes
Machine total weight: 3,700 kg
Floor space: 4370 × 2200 × 1800 mm
Maintenance & use books: Yes
Electrical drawings: Yes
CE certification: Yes
Diamond holder included: Yes
Housing included: Yes
