Glatt VG PRO 200, GSE PRO 200, GPCG PRO 60 Granulation plant

Glatt VG PRO 200 mixing granulator
Gross volume 209 L
Usable volume 60-160 L, 36-96 kg at a density of 0.6 kg/dm3
Container pressure shock resistance 12 bar
Mixing blade drive 15 kW, 10-200 rpm
Chopper drive 5.5 kW, 3,000 rpm
Protection class IP65
Mixer with explosion protection EX II 3G (Zone 2), motors EEX, control cabinet NON EX
Product-contact seals in elastomer
Product-contact parts in AISI 318LN/1.4462, AISI 316L/1.4435,
AISI 316L/1.4404
Powder vacuum feed, feed pipe DN 50
Pneumatic discharge valve
Liquid feed via spray system with peristaltic pump
WIP via rotating cleaning nozzles with WIP rack
Qualification support package (DQ/IQ)
GlattView 19" operation panel

Glatt GSE PRO 200 rotary sieve
Capacity 100-1,500 kg/h
Rotor speed 150-1,500 rpm
Explosion protection ATEX II 3G (Zone 3)
Product-contact parts in AISI 316L/1.4435,
AISI 316L/1.4404
Cleaning nozzles
Qualification support package (DQ/IQ)

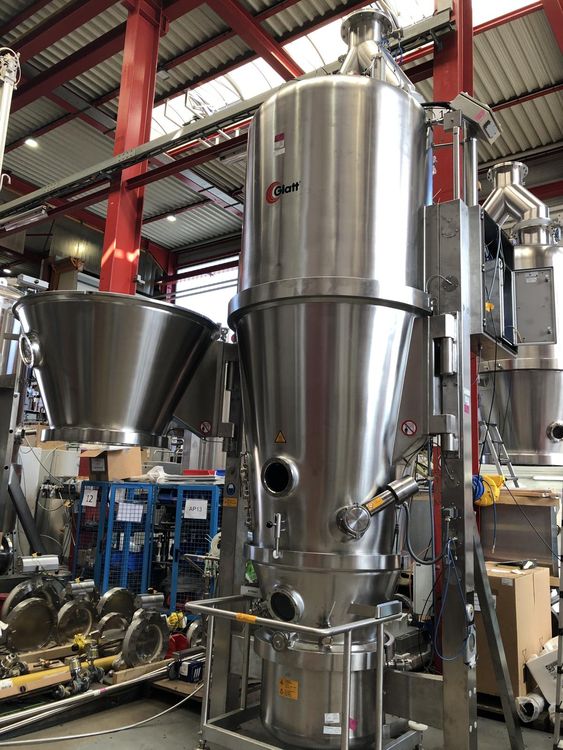

Glatt GPCG PRO 60 fluidised bed system with HS-Wurster container 24lquote + 18quote
Dual-chamber/stainless steel cartridge blow-out filter housing enables continuous fluidisation even during filter cleaning, ensuring uninterrupted spraying or drying
Suitable for organic solvents
Pressure shock resistant 12 bar
Gross volume granulation 290 L
Usable volume granulation 87-232 L, 43-116 kg at density 0.5 kg/dm3
Gross volume HS-Wurster 24" 349 L
Usable volume HS-Wurster 24" 40.5-162 L, 32.4-129.6 kg at 0.8 kg/dm3
Gross volume HS-Wurster 18" 151 L
Usable volume HS-Wurster 18" 25.2-101 L, 20.1-80.8 kg at 0.8 kg/dm3
NON-EX supply air system with filters, humidification/dehumidification, heating by on-site steam
Exhaust air system with filters
Explosion protection valves for supply air/exhaust air, type Ventex, coated (FDA-compliant)
Liquid supply via spray system with 2-channel peristaltic pump in Ex design
WIP with separate WIP rack NON-EX and tank for cleaning liquid 60 L, control integrated in GlattView control system, flow rate max. 4,400 ml/min
Parts in contact with the product in AISI 318LN/1.4462, AISI 316L/1.4435, AISI 316L/1.4404, AISI 316/1.4401
PLC/IPC Siemens, Windows 10 operating system
GE Proficy iFix visualisation software
MS SQL
GlattView batch control system
Menu languages: German, English, Chinese
Audit trail including viewer
PDF batch record with colour laser printer
Excellence United Service Portal BASIC
GlattView 19" operation panel with integrated VG PRO 200 + GSF PRO 200 control system
Qualification support package (DQ/IQ/OQ)
Drive for entire system 380/240/24V/50Hz
Stainless steel platform, required room height 6 m
