Glatt VG PRO 200

Glatt VG PRO 200 mixer-granulator
Gross volume 209 l
Useful volume 60-160 l, 36-96 kg with a density of 0.6 kg/dm3

12 bar pressure resistant container
Mixing paddle drive 15 kW, 10-200 rpm
Shredder drive 5.5 kW, 3000 rpm
IP65 protection type

Mixer with explosion protection EX II 3G (zone 2), EEX motors, NON EX distribution cabinet
Joints in contact with the product in elastomer

Parts in contact with the product in AISI 318LN/1.4462, AISI 316L/1.4435, AISI 316L/1.4404
Vacuum powder feed, DN 50 feed pipe

Pneumatic emptying valve
Liquid feed by peristaltic pump spray system
WIP using rotating cleaning nozzles with WIP rack

Qualification Assistance Package (DQ/IQ)
19" GlattView Dashboard
Glatt GSE PRO 200 rotary sieve

Performance 100-1500 kg/h
Rotor speed 150-1500 rpm
ATEX II 3G explosion protection (zone 3)

Parts in contact with the product in AISI 316L/1.4435,
AISI 316L/1.4404
Cleaning nozzles
Qualification Assistance Package (DQ/IQ)

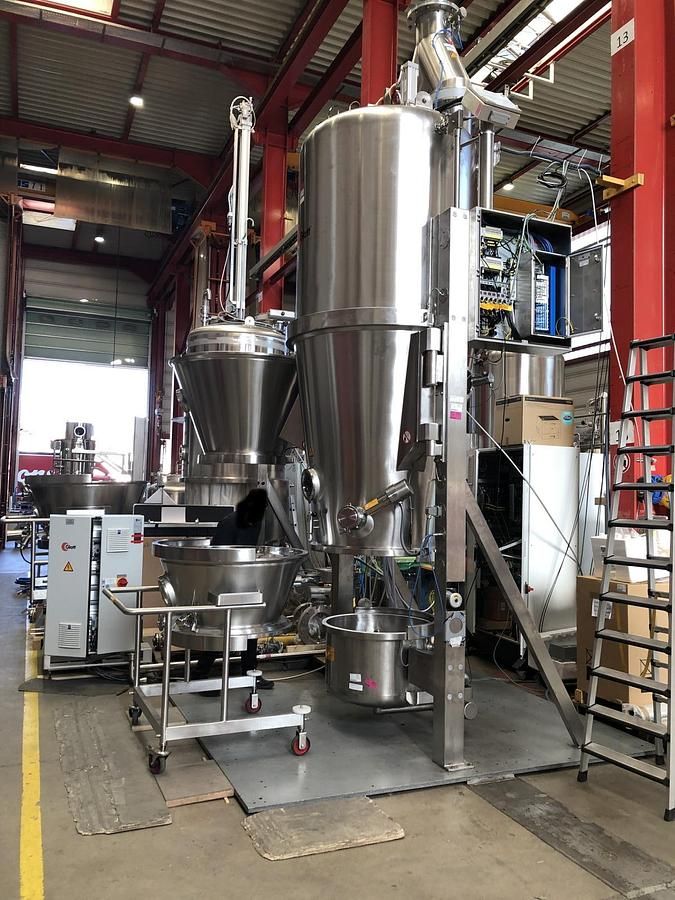

Glatt GPCG PRO 60 fluidized bed system with 24« + 18" HS-Wurster container

The two-chamber blowing filter housing/stainless steel cartridges allows continuous fluidization even during cleaning of the filters and therefore uninterrupted spraying or drying

Suitable for organic solvents
Resistant to 12 bar pressure strikes
Gross volume of granulation 290 l
Useful volume of granulation 87-232 l, 43-116 kg with a density of 0.5 kg/dm3
Gross volume HS-Wurster 24" 349 l

Useful volume HS-Wurster 24" 40.5-162 l, 32.4-129.6 kg with 0.8 kg/dm3
Gross volume HS-Wurster 18" 151 l
Useful volume HS-Wurster 18" 25,2-101 l, 20.1-80.8 kg with 0.8 kg/dm3

NON-EX inlet air system with filters, humidification/dehumidification, steam heating on site
Outlet air system with filters

Explosion protection valves ventex type outlet air/outlet air, coated (conforms with FDA)

Liquid supply by 2-channel peristaltic pump spray system in Ex design

WIP with separate WIP NON-EX rack and tank for 60 l cleaning liquid, integrated control in GlattView control system, max flow rate. 4400 ml/min

Parts in contact with the product in AISI 318LN/1.4462, AISI 316L/1.4435, AISI 316L/1.4404, AISI 316/1.4401

PLC/IPC Siemens, operating system Windows 10

GE Proficy iFix Display Software

MS SQL

GlattView batch control system

Menu languages: German, English and Chinese

Audit log with viewfinder included

Logging of batches in PDF with color laser printer

Excellence United BASIC Service Portal

19" GlattView Control Panel with VG PRO 200+ GSF PRO 200 control integration

Qualification Assistance Package (DQ/IQ/OQ)
Power of the entire installation 380/240/24 V/50 Hz
Stainless steel platform, room height required 6 m
