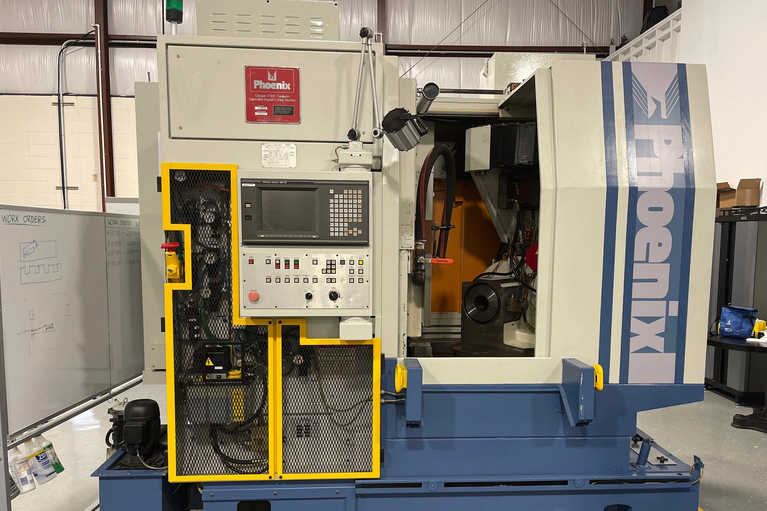

Gleason 175HC 500 RPM Spiral Bevel Gear Generator

GLEASON 175HC
Year: 1997

Fanuc 150 M CNC Control
Stack Light
Work Light
Transformer
Pneumatics
Lube System
Heidenhain Scales
Coolant System

Extreme Ratio: 10:1
Root Angle Range (B-Axis): -5° to 90°
Equivalent Root Angle Range: -8° to 90°
Max Gear Pitch Diameter (Face Hobbing, 1:1): 6"
Max Gear Pitch Diameter (Face Hobbing, 2:1): 7.5"
Max Gear Pitch Diameter (Face Hobbing, 5:1): 7.5"
Max Full Depth (Face Hobbing): 0.550"
Max Face Width (Face Hobbing): 1.6"
Max Gear Pitch Diameter (Face Milling, 1:1): 6.750"
Max Gear Pitch Diameter (Face Milling, 2:1): 8.5"
Max Gear Pitch Diameter (Face Milling, 5:1): 8.5"
Max Full Depth (Face Milling): 0.625"
Max Face Width (Face Milling): 1.6"
Max Swinging Base Travel (B-Axis): -5° to 90°
Max Vertical Travel (Y-Axis): -4" to 7"
Max Horizontal Travel (X-Axis): -6" to 4"
Sliding Base Travel (Z-Axis): 2" to 12"
Machine Center to Work Spindle Face: 4.5"
Tooth Number Range: 5 to 200
Cutting Diameter (Face Milling): 1.1" to 7.5"
Cutting Diameter (Helixact): 100mm to 200mm
Cutting Diameter (Fine Pitch): 102mm to 152mm
Cutting Diameter (Coarse Pitch): 152mm
B-Axis Speed: 30°/sec
A-Axis Speed (Face Milling): 0–75 RPM
A-Axis Speed (Face Hobbing): 0–375 RPM
C-Axis Speed (Cutter Spindle): 30–500 RPM
X-Axis Speed: 4.92"/sec
Y-Axis Speed: 4.92"/sec
Z-Axis Speed: 4.92"/sec
Work Spindle Taper Diameter (Large End): 3-29/32"
Taper per Foot: 39/64"
Taper Depth: 3"
Floor Space: 95.75" x 63.5"
Machine Height: 90.75"
Approximate Weight: 22,000 lbs
