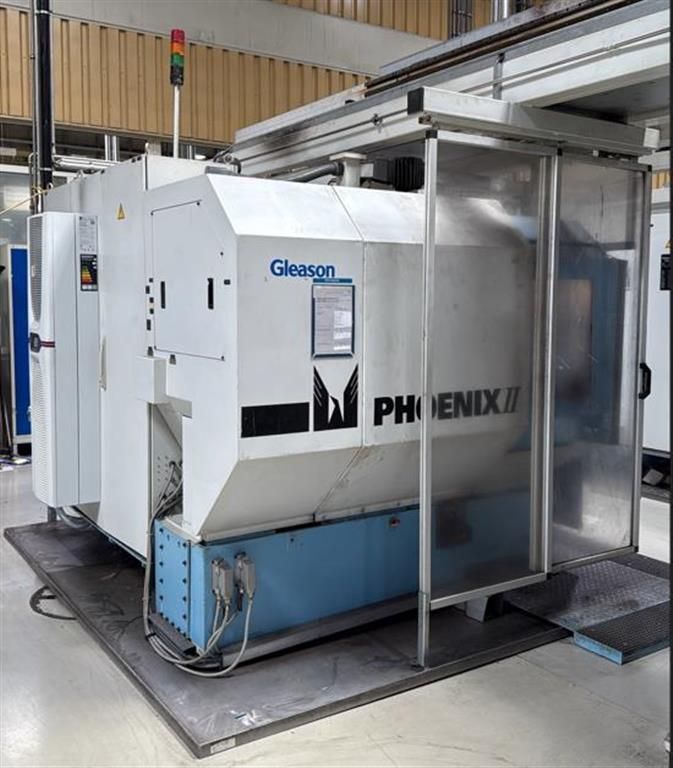

Gleason 275 HC Variable Speed Bevel spiral gear milling cutting system - induction
Ref :
2722868-3-GO
Condition :
Used
Manufacturer :
Gleason
Model :
275 HC
Spindle Speed :
Variable Speed
Short Description :
Bevel spiral gear milling cutting system - induction
Year(s) :
2002
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
30 Jan. 2026
GLEASON 275 HC
2002
Control type CNC

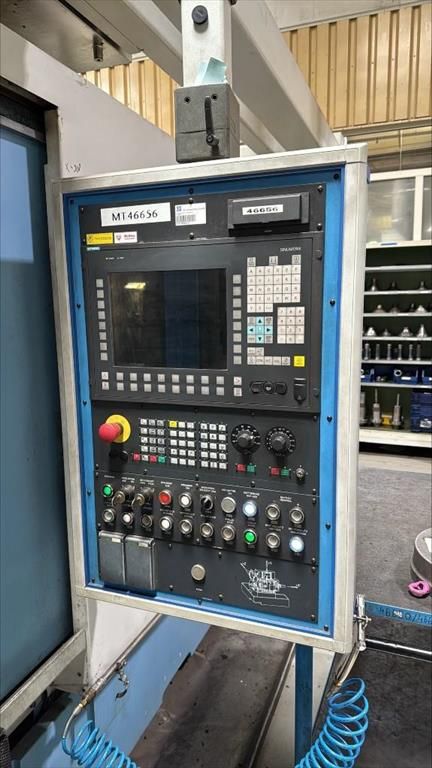

Control system Siemens 840D
Max. gear diameter 275 mm
Machine weight approx. 9.4 t
Space requirement approx. 4700 x 3600 x 3820 mm
Min. number of teeth 5
Max. number of teeth 2000
Tooth height 20 mm
Max. internal gear width 58 mm
X-axis travel 325 mm
Y-axis travel 350 mm
Z-axis travel 475 mm
