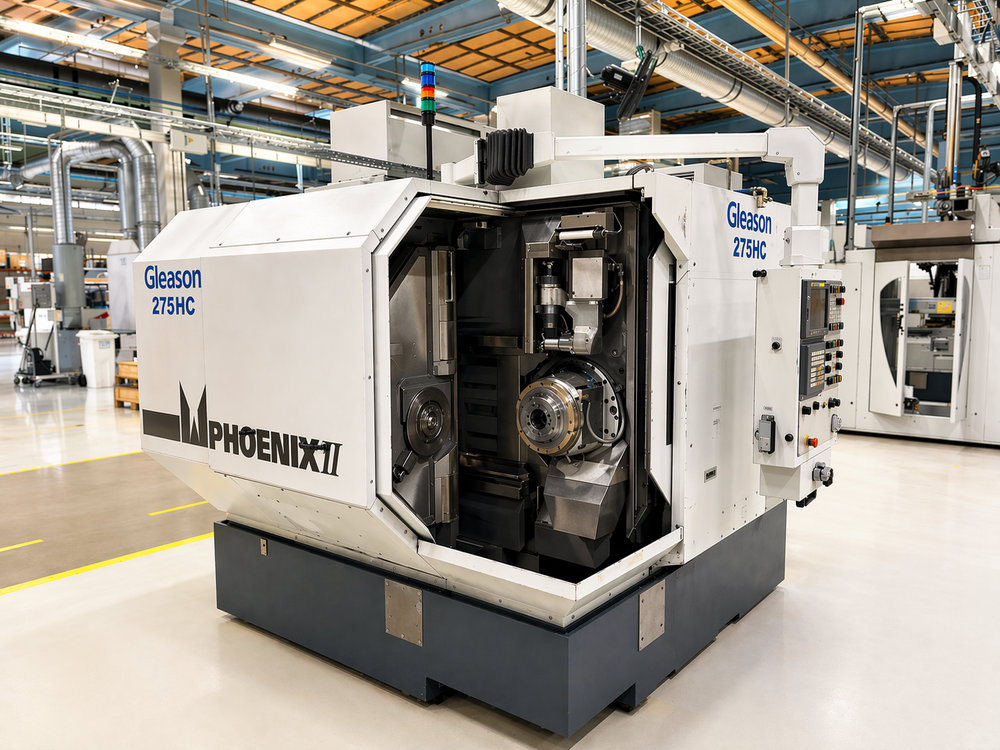

Gleason 275HC Variable CNC Spiral Bevel Gear Cutting Machine
Ref :
2803307-3-AW
Condition :
Used
Manufacturer :
Gleason
Model :
275HC
Spindle Speed :
Variable
Short Description :
CNC Spiral Bevel Gear Cutting Machine
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
control type: CNC
control system: FANUC
maximum transmission ratio: 1:10
minimum number of teeth: 5
maximum number of teeth: 2000
maximum tooth height / full tooth depth: 20 mm
maximum tooth width: 58 mm
maximum pitch circle diameter: 275 mm
smallest milling head diameter: 2.5 in
largest milling head diameter: 9 in
X-axis travel (horizontal workpiece slide): 325 mm
Y-axis travel (vertical workpiece slide): 350 mm
Z-axis travel (milling slide): 475 mm
table outer diameter: 212.71 mm
feed rate (X and Z axes): 1–6000 mm/min
rapid traverse (X/Y/Z): 10,000 mm/min
B-axis speed: 40 °/s
CNC spiral bevel gear cutting machine
gear manufacturing machine
