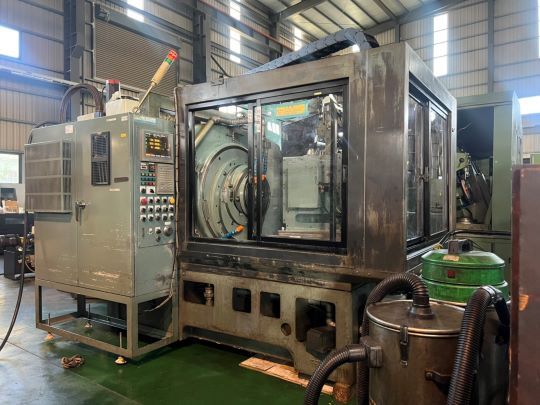

Gleason NO.106 (NC-TYPE) Variable Speed NC Hypoid Gear Generator

Mitsubishi 3-axis (Mldas 64)
Max cone distance 107 mm
Max pitch diameter 10 to 1 ratio 215 mm
Max pitch diameter 2 to 1 ratio 190 mm
Max pitch diameter 1 to 1 ratio 152 mm
Max face width 31.7 mm
Max depth 15.8 mm
Diametral pitch, coarsest 6.35 Mod.
Work spindle diameter of taper hole at large end 23 mm
Taper per foot 15.5 mm
Depth of taper 152.4 mm
Diameter of hole through spindle 61.9 mm
Work head offset above center, maximum 76.2 mm
Work head offset below center, maximum 76.2 mm
Distance from machine center to nose of spindle, maximum 31.7 mm
Machine weight 7500 kg
