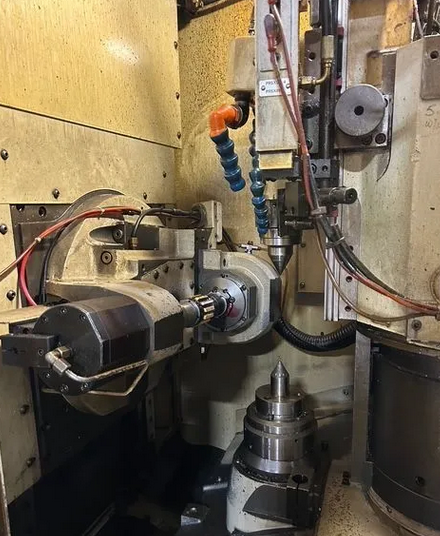

Gleason PHOENIX 125GH 1500 RPM Gear Hobber

Ref : 2738274-3-MT

Condition : Used

Manufacturer : Gleason

Model : PHOENIX 125GH

Spindle Speed : 1500 RPM

Short Description : Gear Hobber

Year(s) : -

Quantity : 1

Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

Fanuc 150MB Control
1.25" Hob Arbor
Tailstock with Center
180° Loader
Coolant System
Chip Conveyor
Hydraulic System
Mist Collector
Work Light
Light Curtain
Manuals

Nominal Workpiece Diameter - 125 mm
Maximum Workpiece Diameter - 4.92"
Maximum Diametral Pitch (Coarsest) - 3.2 Module
Maximum Hob Setting Angle - ±45°
Total Swivel Motion - 220° (-180° to +40°)
Maximum Hob Diameter - 115 mm
Maximum Hob Length - 215 mm
Hob Arbor Diameter (Optional) - 22, 27, 32, 40 mm
Tangential Slide Travel (Hob Shift) - 200 mm+
Hob Speed Range - 150-1500 RPM+
Workspindle Speed - 5-250 RPM+
Floor Space - 2578 x 1650 x 3117 mm+
Net Weight - 6,820 kg
