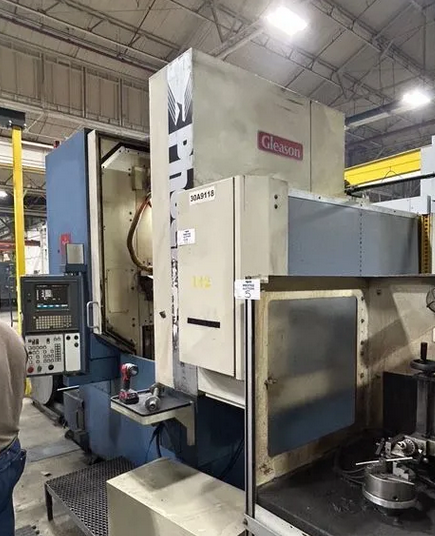

Gleason PHOENIX 400GH Variable Speed Gear Hobber

Max. Axial Hob Slide Travel - 20.67"
Max. Radial Slide Travel - 10.83"
Min. Hob Shift (Tangential Slide Travel) - 8.66"
Total Swivel Motion - 210° (-165° to +45°)

Fanuc 150MB Control
Tailstock with Center
180° Loader
Coolant System
Chip Conveyor
Hydraulic System
Mist Collector
Work Light
Light Curtain
Manuals

Max. Workpiece Diameter with Carousel Loader - 15.75"
Max. Workpiece Diameter Manual Load/Unload - 17.72"
Max. Diametral Pitch (Standard Hob Head 100-1000 RPM) - 2 NDP (12 Module)
Max. Diametral Pitch (Optional Hob Head 150-1500 RPM) - 2.5 NDP (10 Module)
Max. Hob Spindle Torque - 2500 in.lb.
Max. Hob Setting Angle - ±45°
Min. Number of Teeth - 2
Center Distance Hob Spindle to Workspindle Min./Max. - 1.38"/12.20"
Height Workspindle to Center of Hob Spindle Min./Max. - 2.95"/23.62"
Distance Workspindle to Tailstock Face Min./Max. - 13.78"/38.47"

Workspindle Mounting Diameter with Adaption - 14.96"
Workspindle Depth of Hole - 5.98"
Workspindle Bolt Circle Diameter - 5.91" & 7.48"
Workspindle Tapped Holes - M10 x 1.5 x 20 mm Deep

Max. Hob Diameter - 6.3"
Max. Hob Length - 9.5"
Hob Spindle Taper - ISO 40 x ISO 40
Hob Speed Range - 100-1000 RPM (150-1500 RPM Optional)
Workspindle Speed - 1-75 RPM (5-150 RPM Optional)
Rapid Traverse Rate Axial - 197 in/min
Rapid Traverse Rate Radial - 197 in/min
Hob Drive Motor - 20.1 HP
Hydraulic Pump Motor - 5 HP
Hydraulic Pump Capacity - 10 GPM
Height without Mist Collector - 117"
Height with Mist Collector - 129.5"
Floor Space Manual Load/Unload - 79" x 144"
Floor Space with Carousel Loader - 79" x 133"
Net Weight - 26,000 lbs
