GM 330 FB-D

Converting Line

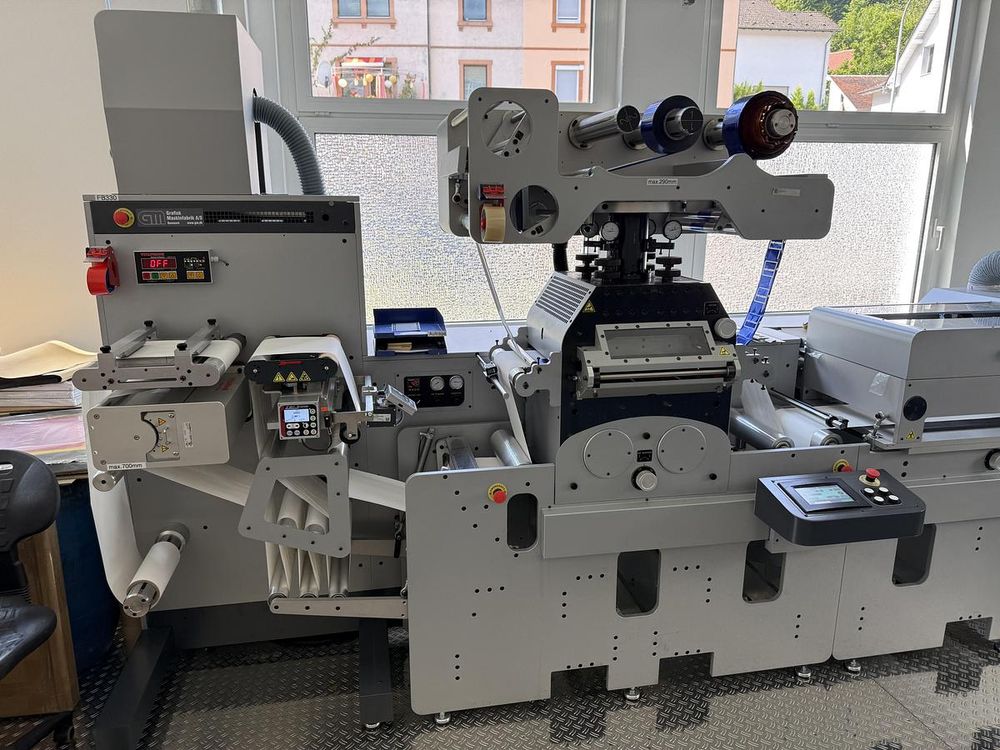

Grafisk Maskinfabrik GM 330 FB-D (Hot stamp + Screen print)
Max. web width: 350 mm
Min. web width: 50 mm
Unwind diameter: max. 700 mm
Rewind diameter: max. 600 mm

- Vetaphone Corona
- BST web edge control

Hot foil stamping unit (flatbed)
Speed: 6,000 stamps/h or 10-15 m/min
Web width: 110 mm - 330 mm
Dual foil unwind and rewind with a diameter of 250 mm
Substrates: 50-500 μm
Board thickness: 5-10 mm; 7 mm is standard
Plate pressure: 30 tons
Foil feed in transverse and longitudinal directions (rotating tower)
Temperature range 80°-130° C
Heat-up time approx. 20 min.

Screen printing unit
Speed 4000 print runs/h or 5-15 m/min.
Web width 110 mm - 330 mm
Frame size 660 mm x 500 mm
Frame type 30 mm x 30 mm aluminum frame
Printing area 330 mm (length) x 330 mm (width)
