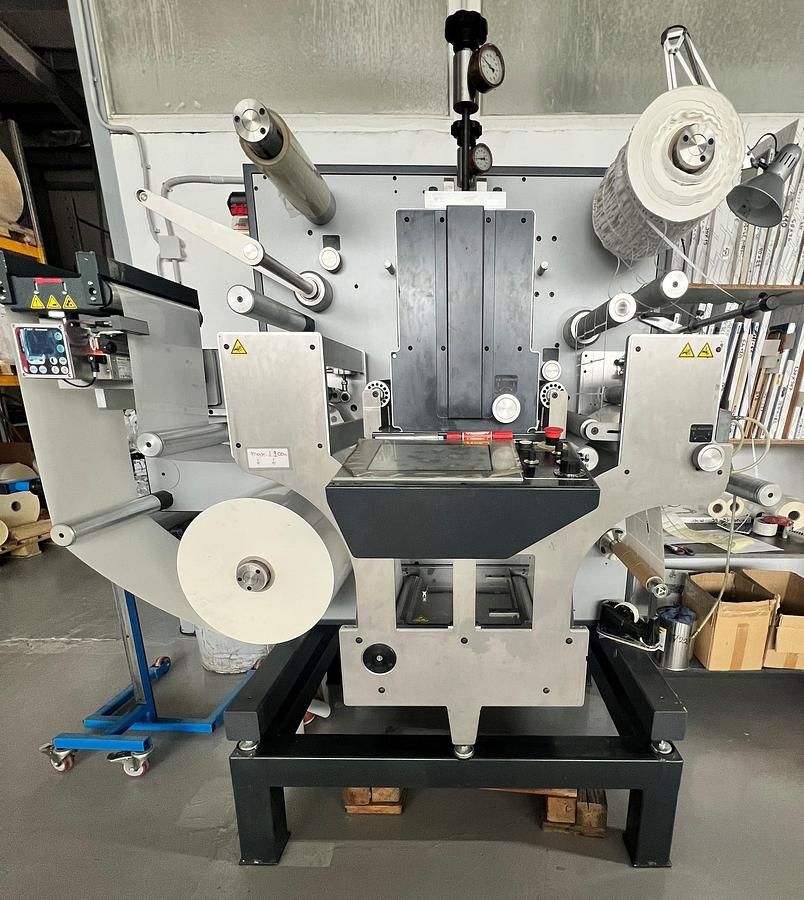

GM DC330 Nano

Ref : 2747653-4-MT
Condition : Used
Manufacturer : GM
Model : DC330 Nano
Year(s) : 2019
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Web Width from 200 mm up to 330 mm
Substrate Thickness from 20 μm - 200 μm
Unwinder with max reel diameter of 500 mm
BST Web Guide | Servo driven web-tension control
Precision Cutting to reduce waste
Lamination Unit with max diameter of 300 mm
Semi- and Full-Rotary Die Cutting Unit
Repeat Length from 2 – 22”
Speed: semi-rotary 32 m/min | full-rotary 50 m/min
Die plate size: 50,8 mm up to 558,8 mm
Splice Table
Rewinder with max reel diameter of 400 mm
Slitting Unit with pneumatic crush knives
Matrix Waste Rewind
10” Colour Touch Display
Compact footprint: W 1,60 m D 1,70 m H 1,50 m | 800 kg
Power and Air: 3x 400V+N+PE / 16 A / 5 bar air
Can be demonstrated, immediately available.
