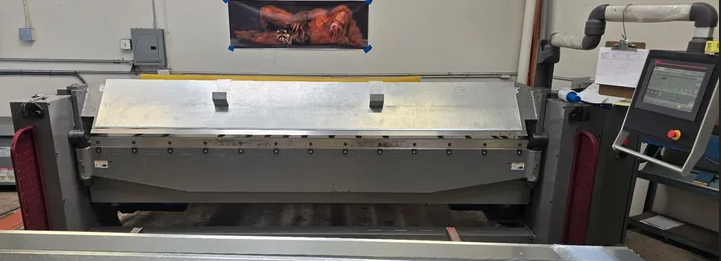

GMC EFM-1014CNC Max thickness 14 Ga.

GMC EFM-1014CNC
2023

Bending length capacity 10'1"
Bend angle, programmable 0–135°
Hemming capacity, mild steel 24 Ga.
Hemming capacity, stainless steel 28 Ga.
Clamping opening 4-7/8"
Min. reverse bend 1/2"
Max table back gauge distance 48-3/8"
Min table back gauge distance 1/2"
Back gauge repeatability 0.0039"
Back gauge table height 35-3/4"
Motor for bending leaf 4 hp, 3-phase, 35A
Prewired voltage 220V AC
Servo motor for back gauge 2 hp, 3-phase, 220V AC
Clamping motor 1-1/2 hp, 3-phase, 220V AC
Machine weight 9,850 lbs
Shipping weight 10,150 lbs
Machine dimensions (LxWxH) 168" x 79" x 67"
Shipping dimensions 174" x 80" x 71"
ESA CNC control
16" digital glass touchscreen
Max 99 bends per program
2000 programs storage
Graphics profile library
Programmable radius bend
Programmable angle and correction
48" CNC back gauge with table and fingers
Mild steel tensile strength 60,000 PSI
Stainless steel tensile strength 85,000 PSI
Aluminum tensile strength 28,000 PSI
Supports close hemming
Supports open hemming
