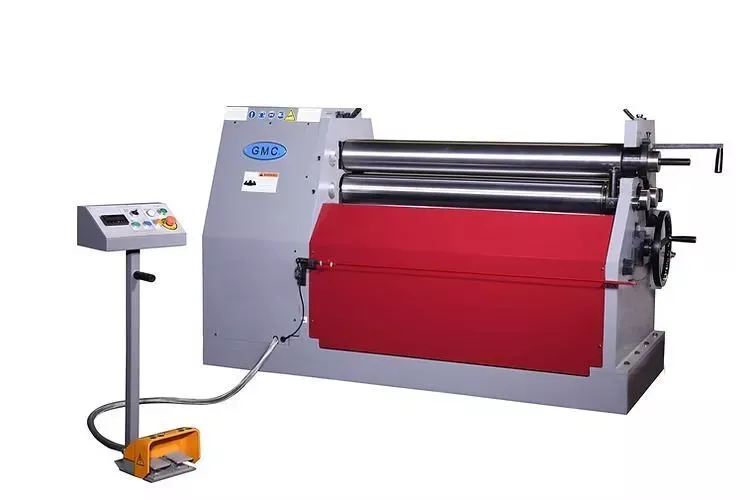

GMC HBR-0425
AMERICA North (USA-Canada-Mexico)
Roll Capacity Mild Steel 4' x 1/4"
Roll Capacity Stainless Steel 4' x 3/16"
Roll Capacity Soft Aluminum 4' x 3/8"
Minimum Thickness 22 Ga
Minimum Roll Diameter 8"
Roll Length 4' 3"
Roll Diameter 6"
Pre-bend 0.18"
Rolls Speed 5 RPM
Rolls Opening 2 1/2"
Oil Tank Capacity 12 Gal.
Main Motor 3 HP, 220V/10A or 440V/5A
Weight 4,150 lbs.
Dimensions 87" x 36" x 53"
All three rollers are driven
All three rollers are hardened, up to 50-52 HRC
Easy swing-out top roller
Standard cone attachment installed
LED indicator for bending roll position
Safety line all around the machine for emergency stop
Heavy duty all steel welded machine construction
Hydraulic powered bending roll up/down & tilting adjustment
Planetary reduction gear and pump
Rolls run forward and reverse
Safety type foot pedal control
Overload protection and disconnect switch
Cone attachment for making cone parts
Removable safety foot pedal and tool box
(3) grooves 3/8”, ½”, 5/8” on roll for bending wire
