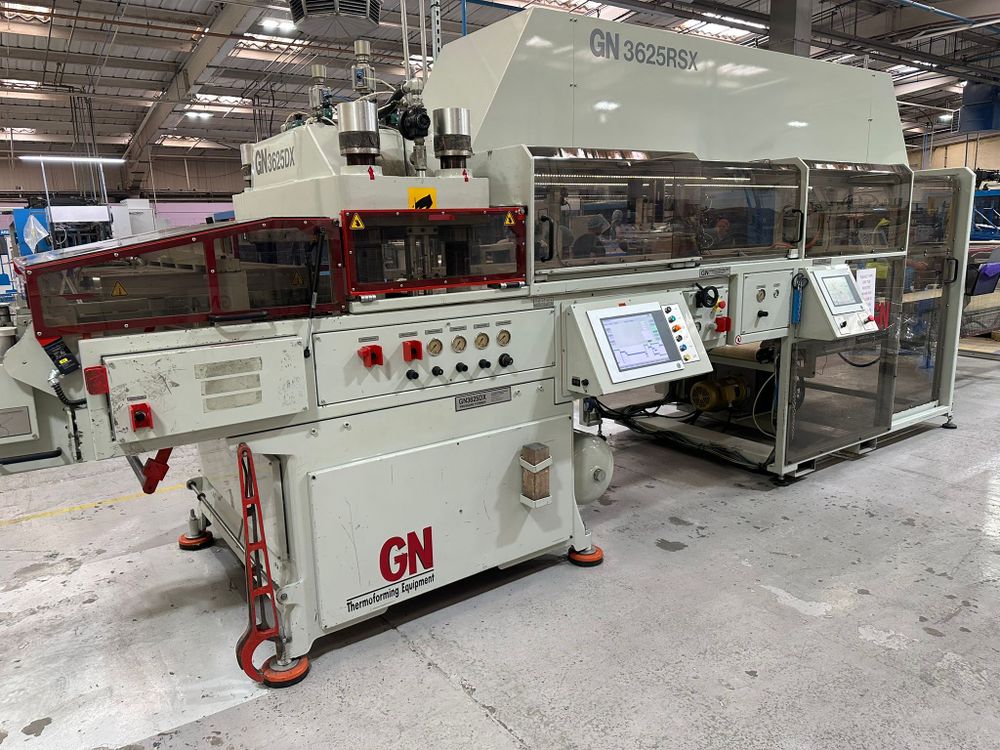

GN 3625DX with 3625 RSX Robot Stacker

Hours: 20203
Forming area: 915 × 635 mm (36″ × 25″)
Depth of draw: 125 mm (5″)
Maximum sheet width: 965 mm (38″)
Material thickness range: 0.15 – 1.00 mm (0.006″ – 0.040″)
Maximum cycle speed: 22 – 30 cycles per minute
(depending on material and setup)
Power consumption: ~12 kW/hr

Electrical requirements:
3-phase, 220–240 V / 380–415 V / 440–480 V, 50–60 Hz

Cooling water:
14 L/min at 15–20 °C (3 gal/min at 58–68 °F)

Air requirements:
Pressure: ≥6.8 bar (100 PSI)
Flow: ~2,000 L/min (~80 CFM)

Knife length:
10,500 mm for APET
11,430 mm for other materials

Machine footprint: 3,200 × 2,100 × 2,210 mm (126″ × 83″ × 87″)
Weight: Approx. 5,987 kg (13,200 lb)

Key features:
Servo-driven platen and sheet transport
Multi-zone contact heating with preheater
Six-point toggle system with oversized bearings
In-mould cutting capability
HMI with diagnostics and remote access
PLC control with tonnage monitoring

Included equipment:
Robotic stackers (GN RSX)

Efficiency highlights:
Low scrap rate (12–14%)
Compact layout
High APET output capability
