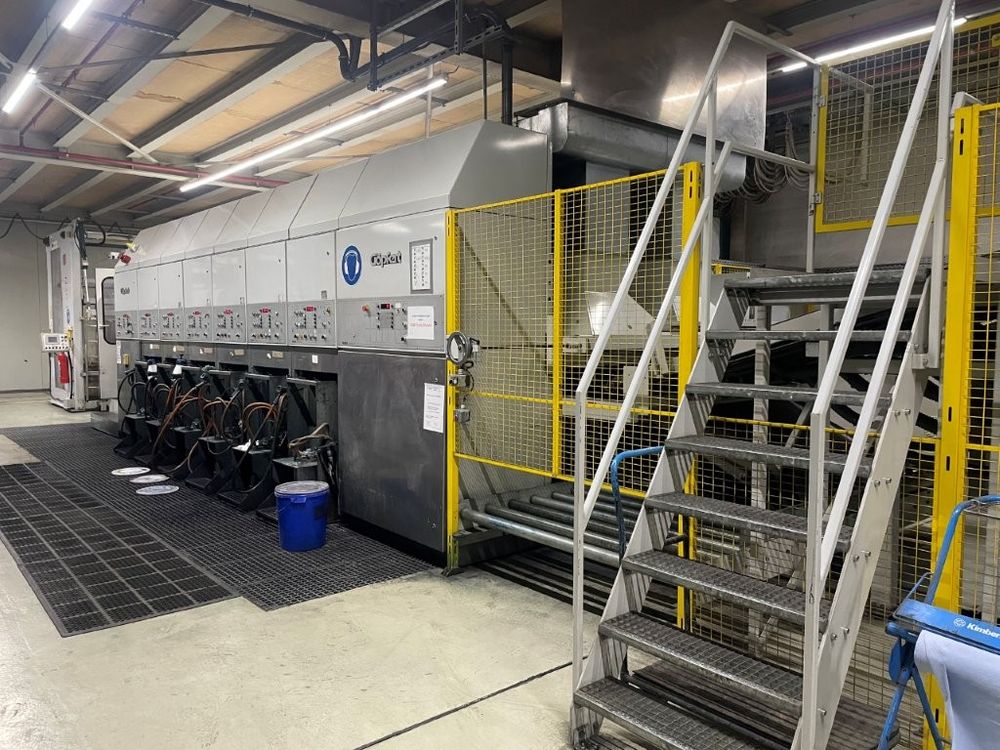

Göpfert Impression 16/20 6 2000 mm
EUROPE (Western and Northern)
6 – colour (or 5c+varnish) Flexo HQPP Printing Machine
Width / Length / sheet Min. 600 mm, Max. 2000 mm (based on running direction)
Sheet length : Min. 460 mm, Std. Max 1540 mm, (running direction), with skip-feed 1676 mm
Material Thickness : 1,0 mm to 9,5 mm
Max. Speed : up to 10.000 sheets/h (depending on material) measured w/o APM
(built-in APM (Auto – Positioning – Motors for pressure/length correction)
Diameter Printing Cylinder : 21“, Nominal 533,4 mm (U nominal = 66“, 1676 mm)
Thickness Cliché : 4,34 mm overall
Printing Length: max. appr. 1540 mm
Machined Flow Path Level : 1270 mm
Heating Power IR-Dryer: 6 x 43 KW
1 Prefeeder „Alliance“ (Serco) – max. hight stack w/o palette = appr. 1800 mm
1 Feeder
Vacuum Tact Feeder w/ 360° friction rollers (SUN Automation)
Integrated de-dusting unit w/ electrode ionization, dust cyclone w/ filter cleaning
6 Flexo – Print Engines, model FD
Sheet Printing from below
Sheet Transport via toothed belt, Sheet Fixing via vaccuum
Servo Gearless Drive per Inking Roller toothed belt w/ tethered impression cylinder
Cliché Cylinder
Anilox rolls
Adjustable by motor - : radial adjustment oft he cliché cylinder
Axial adjustment of the cliché cylinders
Gap Counterpressure vs. cliché cylinder
Gap Anilox roll vs. Cliché cylinder
Manual Adjustment: angle-grade of cliché hanging bracket
Ceramic Anilox Rolls
Chamber Squeegee System
Print Length Correction (APM)
Per Inking Roller 1 IR Dryer-Cassette (+ 1 cassette Inking Roller mounted behing Inking Roller No.6)
1 Vacuum sheet plaiter
Automatic single-sheet export w/ cross conveyor
Vacuum sheet lifting
Advance-per-round Stacker, palette change-over w/o machine stop possible
Semi-automatic feeding of empty palettes w/ automatic positioning
1 CNC machine controller
Programming via screen and keyboard
Automatic positioning of (almost) all motorized axes
Order Data Storage production data acquisition (PDA)
Order – related registration of energy consumption
ERP – interface, modem
Included in offer : 16 Anilox Rolls (Status 06-2025)
