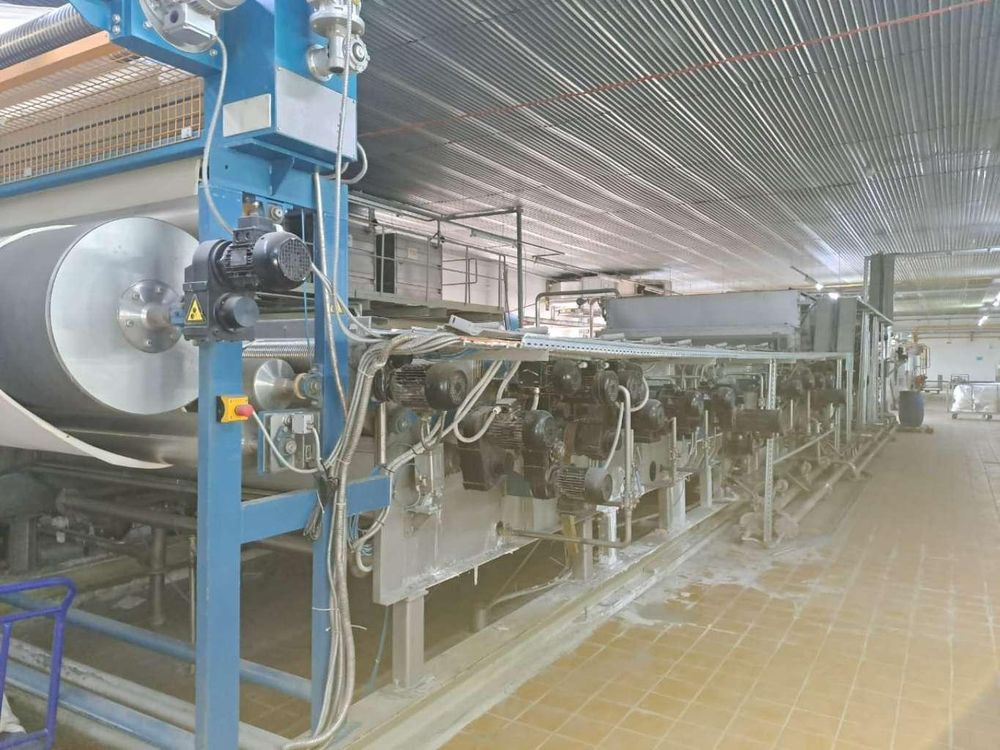

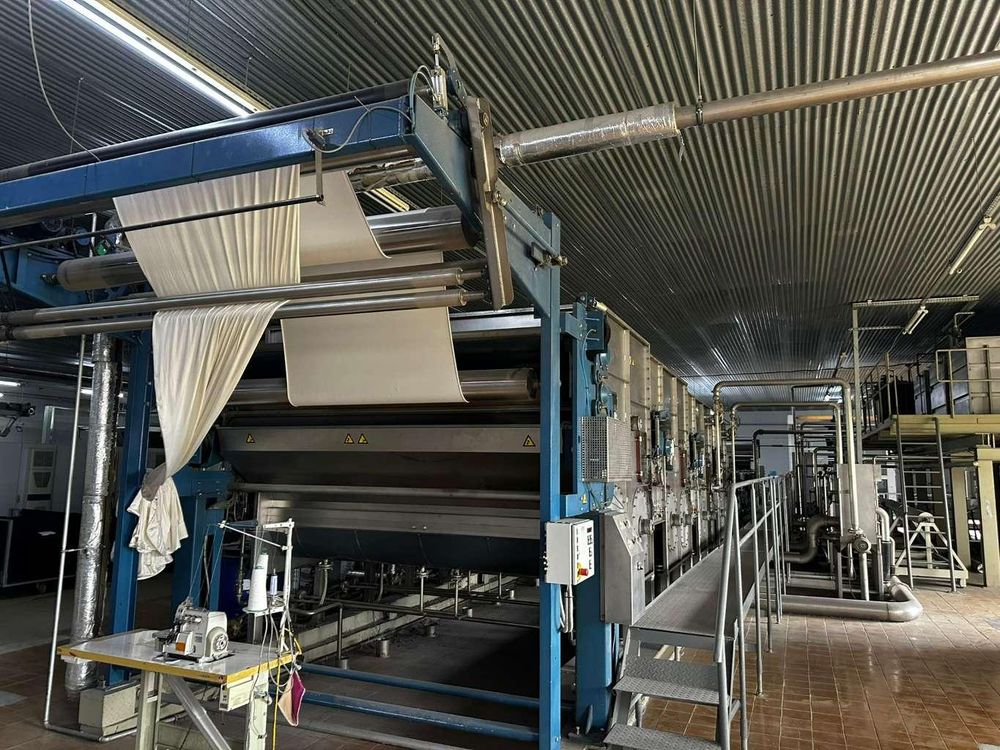

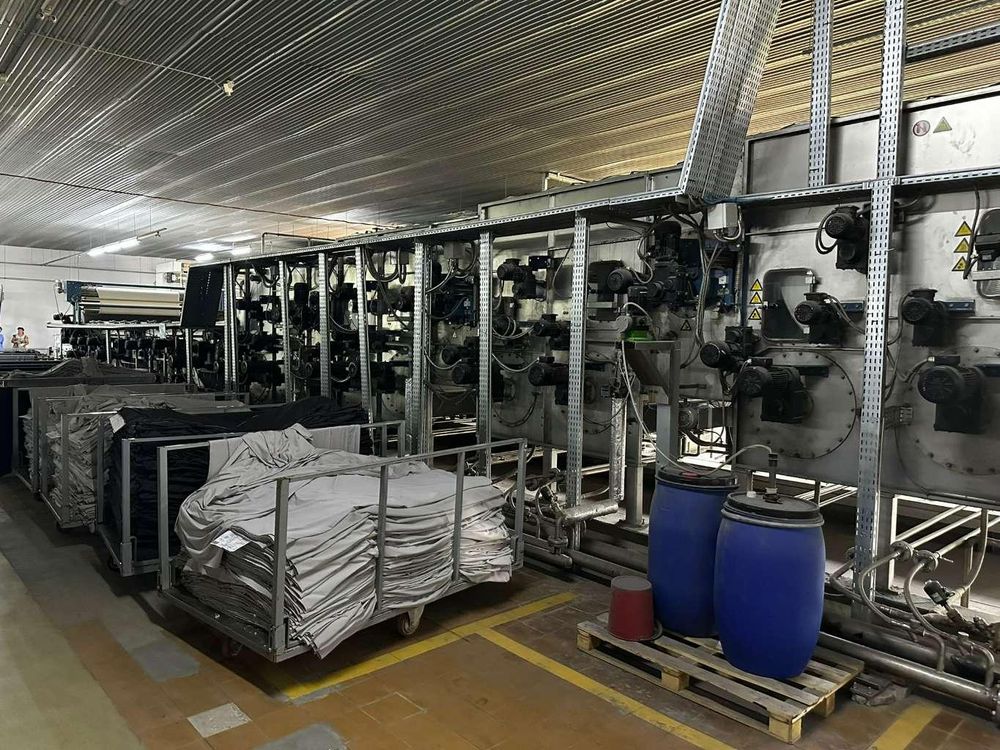

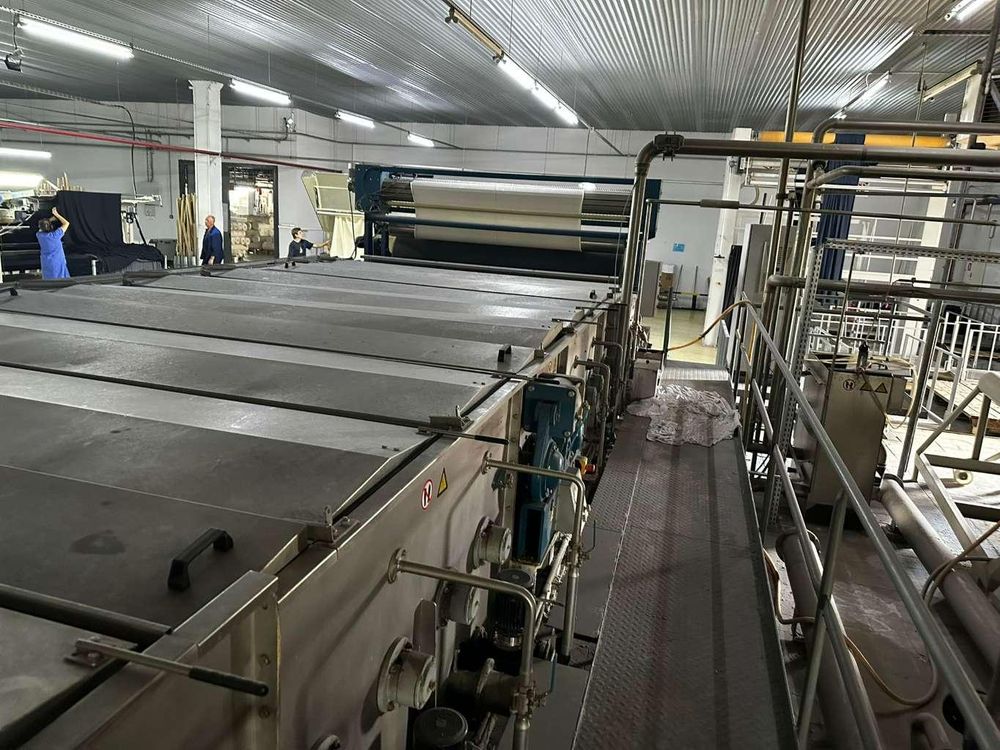

Goller mercerizing machine

Roller width: 2800 mm
Cloth width: 2600 mm
Weight of goods in g/m2: 80 — 300 g/m2
Cold mercerisation / dry in wet
Production speed in m/min: 15 - 20 m/min
Max. techn. Speed: 50 m/min
Chemicals: Mercerizing agent, acetic acid
Water consumption in 1/kg goods: 6-81/kg
Steam consumption in kg of goods: 0,8 kg
Voltage: 400 V, 3 Phasen, 50 Hz
Material: AISI 316
Guide roller diameter: 150 mm
Pendulum roller diameter: 120 mm
Drive side: On the right
Operation side: Left
Piping side: On the right
Colour of the system: RAL 5009 Blau
Colour control cabinet: RAL 7035 Light grey
Required vapor pressure: 4 bar
Required water pressure: 2 bar
Required air pressure: 7 bar
Mercerizing time: 45 sec. - 20 m/min
Stabilization time: 45 sec. - 20 m/min
Room temperature in °C: 45

Machine is in good working conditions.
Stopped on the mill.
