Gonderflex Rotoworx R330-AC-24 13"

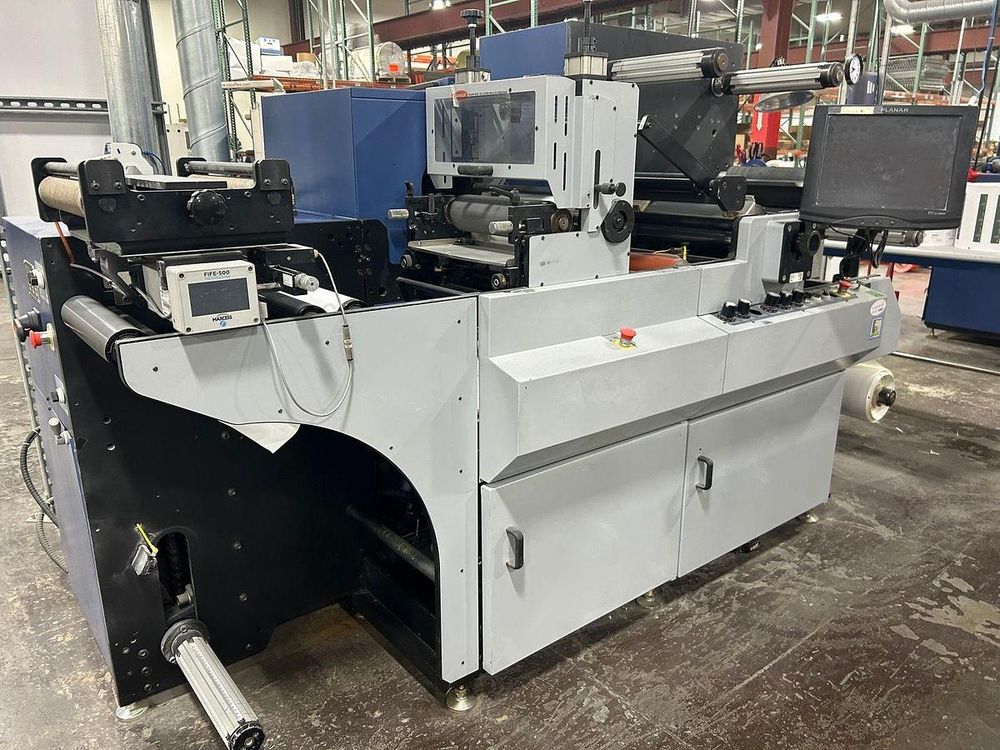

13" GONDERFLEX ROTOWORX MODEL R330-AC-24 SEMI-ROTARY FINISHING SYSTEM
30"(762mm) MAXIMUM UNWIND DIAMETER
3"(76mm) PNEUMATIC UNIWND SHAFT DIAMETER WITH EMPTY ROLL DETECTION
MAGNETIC PARTICLE BRAKE CONTROL
AUTOMATIC TENSION CONTROL
SPLICE TABLE
ULTRASONIC SENSING WEB GUIDE

ROTOWRK R330-AC-24
8-24"(203-609mm) VARIABLE REPEAT
13.0" WEB WIDTH
2.0"
30" DIAMETER (760mm)
24" DIAMETER (610mm)
200 FPM(60MPM) IN SEMI-ROTARY MODE
250FPM (76MPM) IN REWIND/COATING MODE A.C. MOTOR

TOUCH SCREEN
100PSI(7 BAR)
240V 3PH 50 HZ

VARIABLE REPEAT FLEXO STATION
SPOT UV VARNISH OR COLD FOILING IN REGISTER WITH PRINTING AS
WELL AS FULL COVERAGE UV VARNISH COATING
TENSION CONTROL VIA SERVO DRIVE ISO-TENSIONING TECHNOLOGIES
AUTO TENSION CONTROL WITH SENSOR TO REGISTER ON PRE-PRINTED WEB
GRAVITY FEED CHAMBER DOCTOR BLADE ASSEMBLY WITH
SERVO DRIVEN IMPRESSION ROLLER
STANDARD ANILOX ROLL 340 LPI/6.5 BCM/60
INK DRIP PAN
ONE PLATE CYLINDER WITH 8 TO 16 INCH REPEAT
STEPLESS UV CURING SYSTE WITH ELECTRONIC POWER SUPPLY ALSO IR DRYING

LAMINATION UNWIND MODULE COMPLETE
20"(508mm) DIAMETER ROLL CAPACITY
3"(76mm) SHAFT PNEUMATIC CORE SHAFT
AIR BRAKE
MANUAL PRECISION TENSION CONTROL WITH AIR REGULATOR
ROLL FOLLOWER

SEMI ROTARY DIE CUTTING MODULE STATION
MODULE INDEPENDENT TENSION CONTROL VIA
A SERVO DRIVEN ISO TENSIONING TECHNOLOGIES
AUTO REGISTER WITH SENSOR TO REGISTER ON PRE-PRINTED WEB AND
DIGITAL CIRCUMFERENTIAL DISTORTION SOFTWARE
NON-REMOVEABLE SERVO DRIVEN 24" MAGNETIC CYLINDER, 0.019" UNDERCUT
VECTOR MOTOR DRIVEN

DUAL REWIND STATION COMPLETE WITH
MODULE INDEPENDENT TENSION CONTROL VIA
SERVO DRIVEN ISO TENSIONING TECHNOLOGIES
2 VECTOR DRIVEN REWIND WITH 24" ROLL DIAMETER CAPACITY
3"(76mm) CORE SHAFTS
OPEN-LOOP TENSION CONTROL

USER INTERFACE COMPLETE WITH
SELF EXPLANATORY CENTRALIZE CONTROL VIA TOUCH SCREEN
ACCURATE JOB AND BATCH COUNTER SYSTEM WITH ROLL COUNT STOP FEATURE
JOB MANAGER
ALARM MANAGER
INTEGRATED USER MANUAL
REMOTE SERVICE AND DIAGNOSTIC CAPABILITIES VIA SCURE INTERNET CONNECTION

CRUSH SLITTER UNIT WITH 3 KNIVES
NOT CURRENTLY IN OPERATION.
