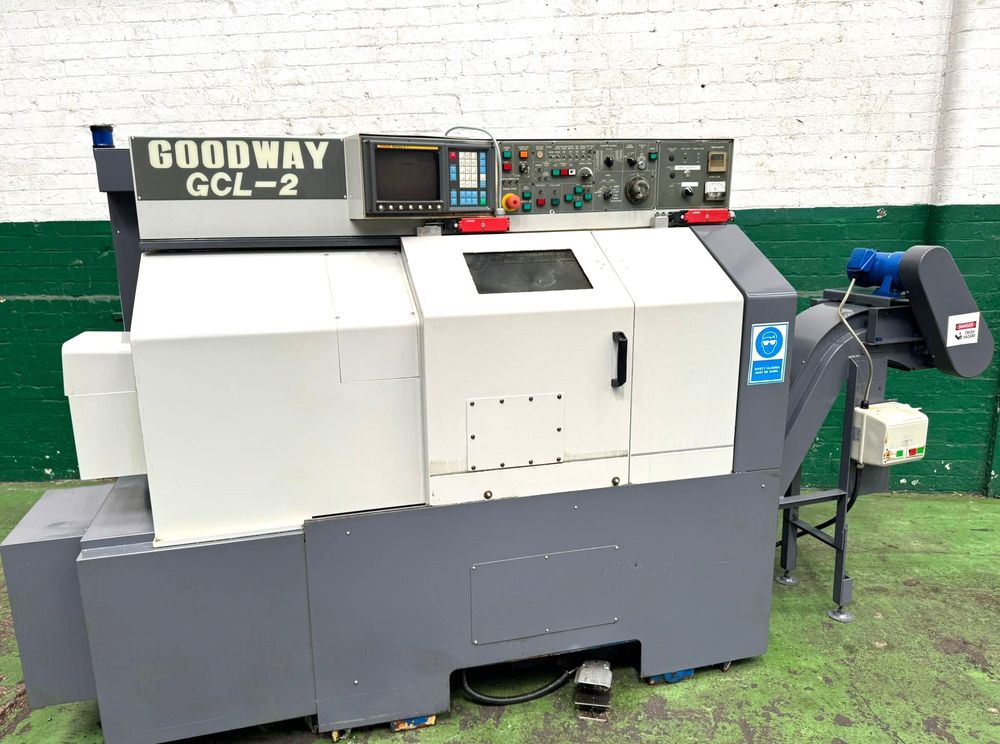

Goodway CNC CONTROL 4500 rpm GCL-2 CNC Lathe 2 Axis

GOODWAY GCL-2 CNC Lathe
1991

Swing over bed 400 mm
Swing over cross slide 280 mm
Maximum turning diameter 220 mm
Maximum turning length 300 mm
Distance spindle nose to turret face min 122 mm
Distance spindle nose to turret face max 462 mm

Spindle nose A2-5
Spindle speeds 45 - 4500 rpm
Spindle motor 7.5 / 11 kW
Spindle bore 55 mm
Spindle bore through draw tube 43 mm

X travel 135 mm
Z travel 340 mm

Rapid traverse X 10 m/min
Rapid traverse Z 12 m/min

8 station turret
Coolant tank capacity 90 litres
Tailstock
Swarf conveyor
Turret tooling
2 x collet chucks

Powered 3 jaw chuck
Tooling & manuals included
Machine dimensions (L x W x H) 2000 x 1290 x 1610 mm
Approximate weight 2500 kg
