1/1

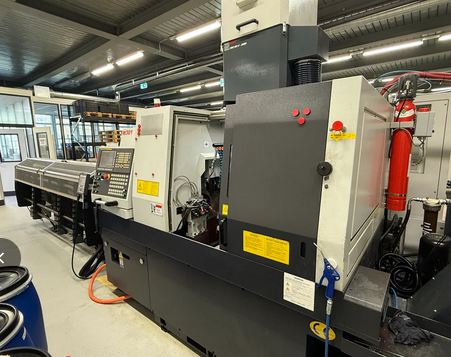

Goodway FANUC Series 31i-MODEL B 6,000 t/min SW 42 3 Axis
Ref :
2756864-3-MT
Condition :
Used
Manufacturer :
Goodway
Controller :
FANUC Series 31i-MODEL B
Spindle Speed :
6,000 t/min
Model :
SW 42
Nb Of Axis :
3 Axis
Year(s) :
2016
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Max turning diameter: 42 mm
Max workpiece length: 110 mm
Spindle speed range: 500–6,000 t/min
C-axis (spindle) resolution: 0.01°
Back spindle speed range: 500–6,000 t/min
Tool-holder number of tools: 5
Number of driven tools: 4
Driven tool spindle speed: 5,000 t/min
Driven tool power: 1.4 kW
Max drilling diameter: 13 mm
Thread drill diameter: M10
Rapid traverse: 30 m/min
Control: FANUC Series 31i-MODEL B
Voltage: 3× 400 V, 50 Hz
Machine weight: 3,300 kg
Machine dimensions: Length 2,880 mm × Width 1,375 mm × Height 1,940 mm
Bar feeder: LNS
Chip conveyor
Coolant system
Oil mist extractor: LNS
Interface: RS232
Fire extinguishing system
