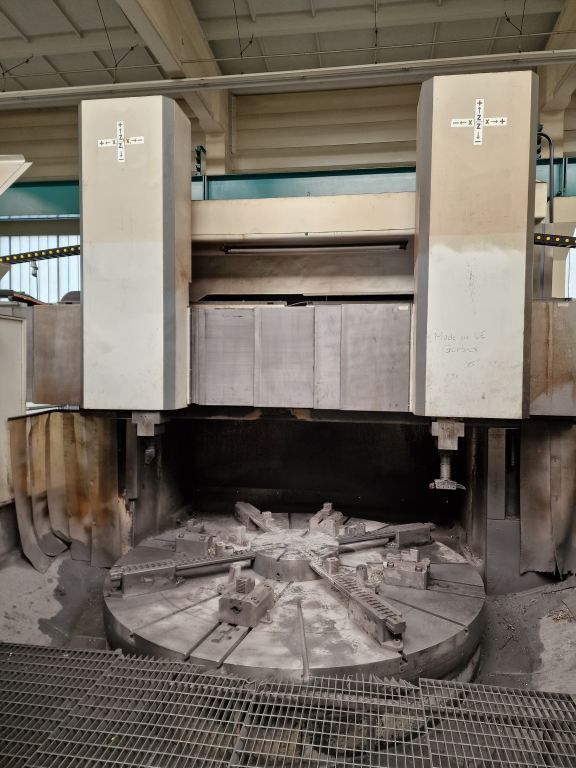

GORBREX TKV 532 Turning diameter: 3200 mm

Ref : 2783675-3-AW

Condition : Used

Manufacturer : -

Model : GORBREX TKV 532

Short Description : Turning diameter: 3200 mm

Year(s) : 2017

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X axis travel: 1720 mm
Z axis travel (ram travel): 1100 mm
Control: Siemens 840D SL
Faceplate diameter: 2800 mm
Turning height: 1600 mm
Maximum workpiece weight: 16000 kg
Table speed: 70 rpm
Number of table speed ranges: constant
Working feed range: 2 – 2000 mm/min
Rapid feed X/Z: 7 m/min
Traverse feed: 360 mm/min
Main motor power: 55 kW
Total power requirement: 69 kW
Machine dimensions: 5500 × 6540 × 4900 mm
Machine weight: 43000 kg
