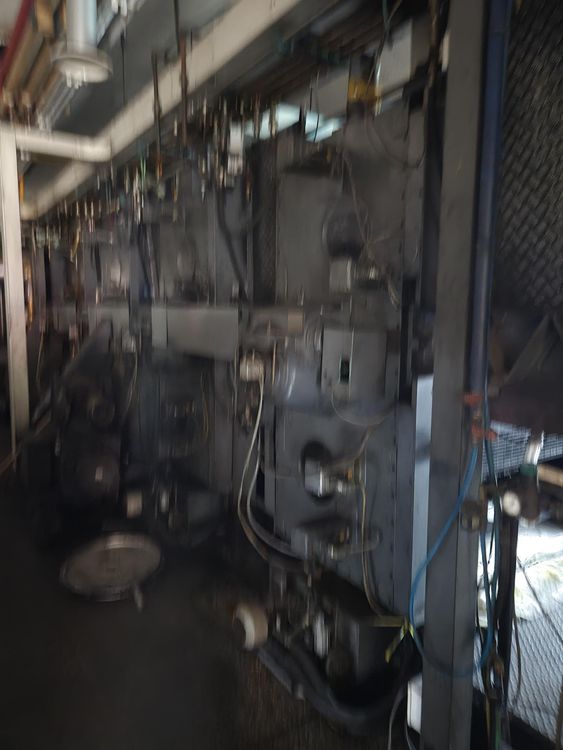

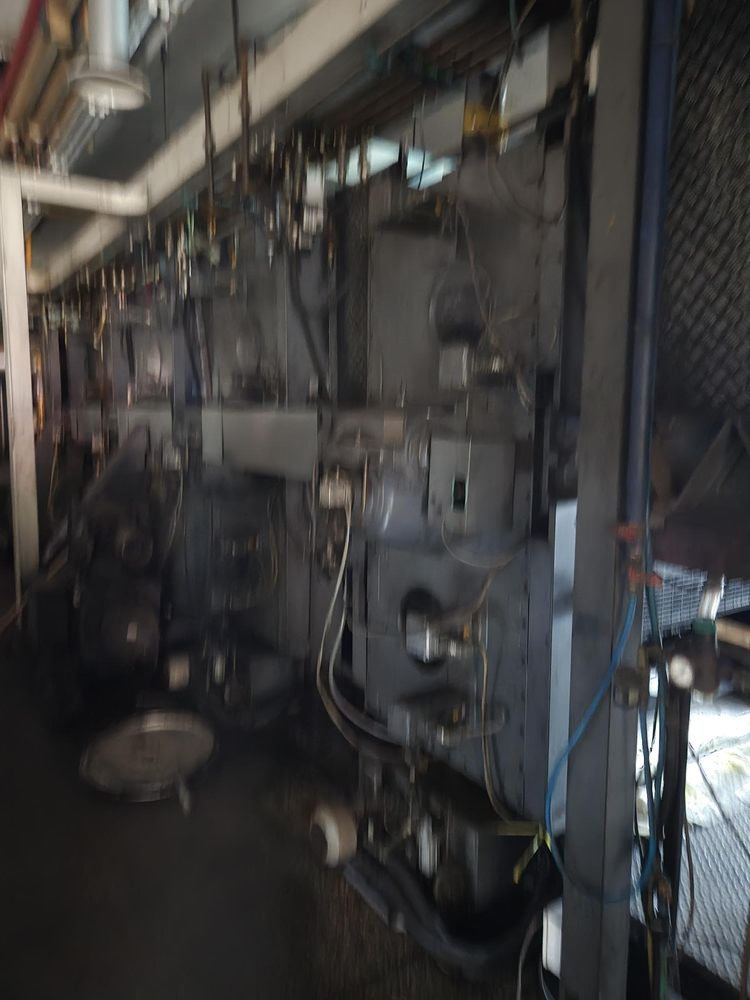

Goss M 600 4

Four printing Units Blanket to Blanket
Cut off: 630 mm
Configuration:
1 GOSS Contiweb SH40-LI-1020 splicer, integrated web tension and web up system including web guide

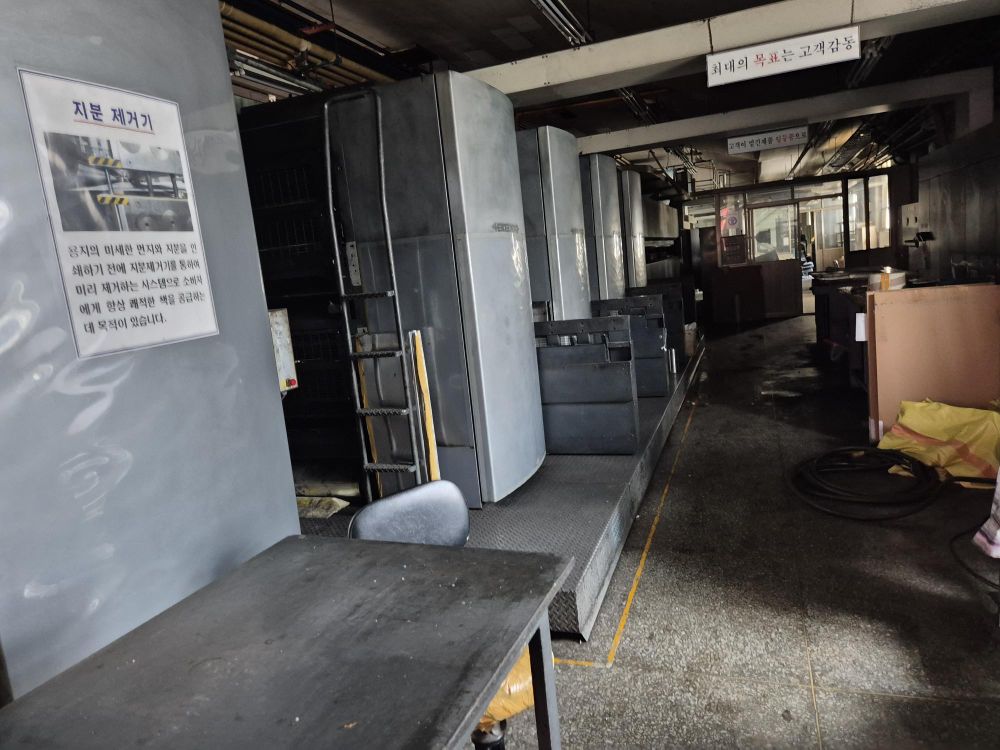

4 GOSS Printing Units Blanket to Blanket,
Autoplate, Ductrol, BALDWIN Blanket Washing device

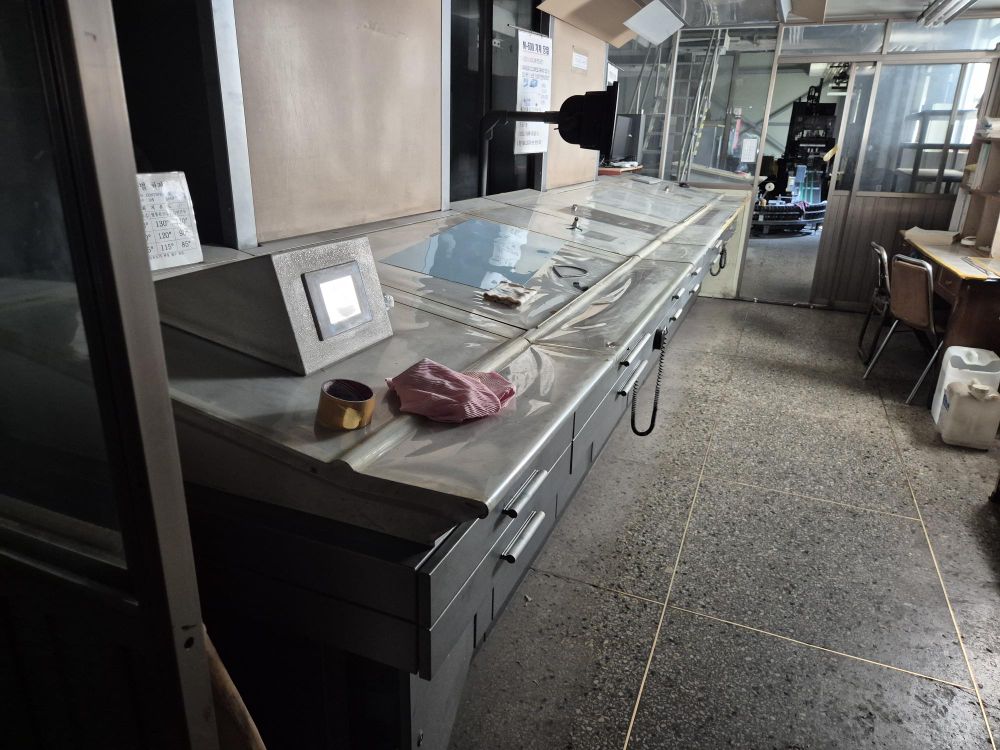

2 Operator consoles Main and auxiliary command PLC communication Control system
Windows operating sysrtem
1 QTI automatic color registration control system
1 QTI cut control - MULTICAM for one web or two ribbon
1 Band break detection package
1 Technotrans Gamma. c 12/30 combination solution system with pri and conductivity meters and ink roller temperature control
1 Ink supply with 4 ink pumps integrated into the OMNICOM system
1 Main press drive system
1 GOSS Contiweb Ecotherm 93-1020 Dryer
1 Goss Chill Rolls, 4-Rolls
1 Goss Silicone Applicator with Technotrans Mixer
1 PLANATOL spine softening System 2 heads
1 GOSS Folder superstructure with Former fold and 4 air-loaded angle bars - two angle bars are motorized
1 Slitter shaft cut the web into two ribbons (1/3 - 2/3 - 1/2 - 1/4 - 2/5 - 3/5)
1 Circumferential perforator/scorer (in-line)

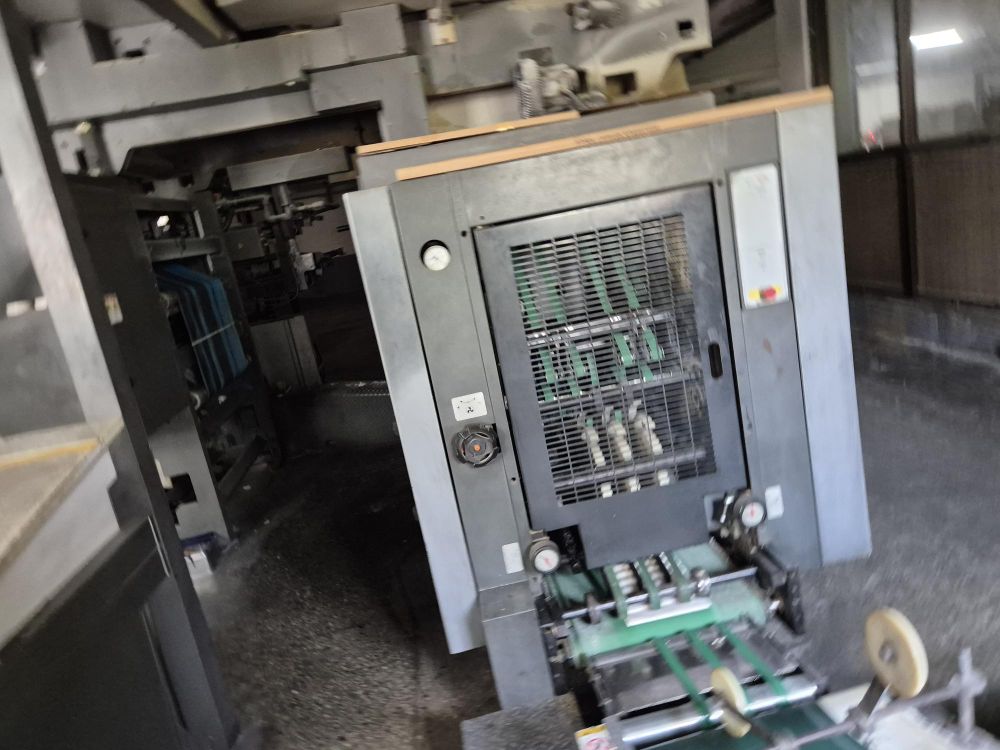

1 Goss JF-48 combination folder with folding MadazineTabloid - DELTA and digest products
Cross peroration cylinders perforate frst fold, second parallel and delta folds
1 Set of Conveyors
1 Low pressure air blower
1 Nela plate bender
1 Nela Plate Punch
1 Conveyor
1 RIMA RS 34 Compensating Stacker

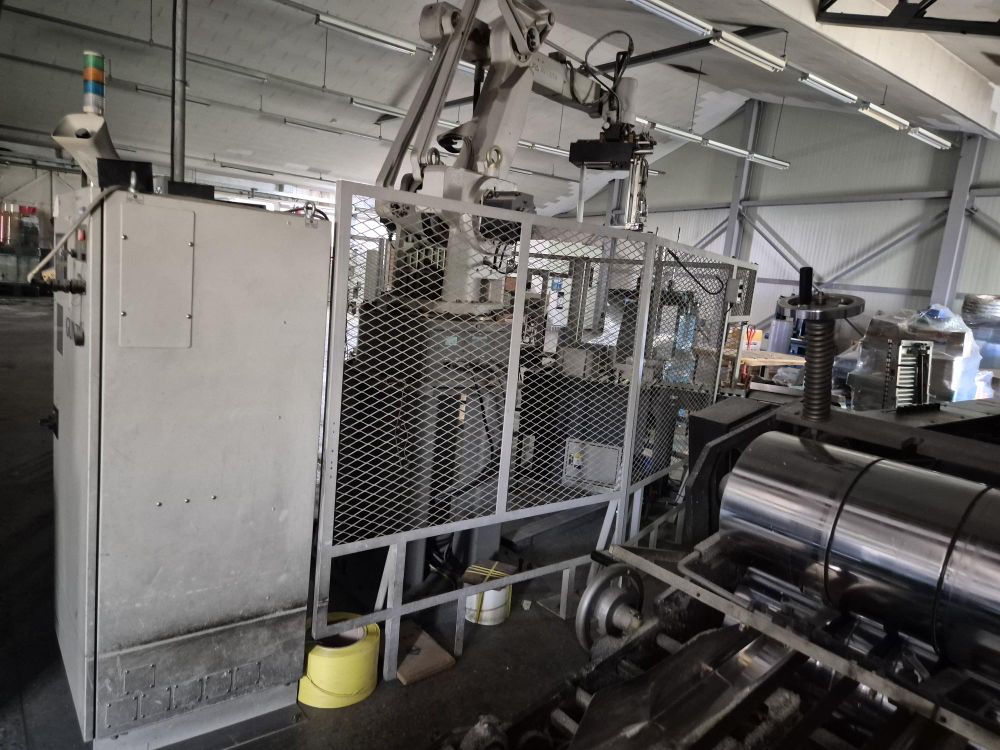

1 Gunze robot arm
Air supply.
