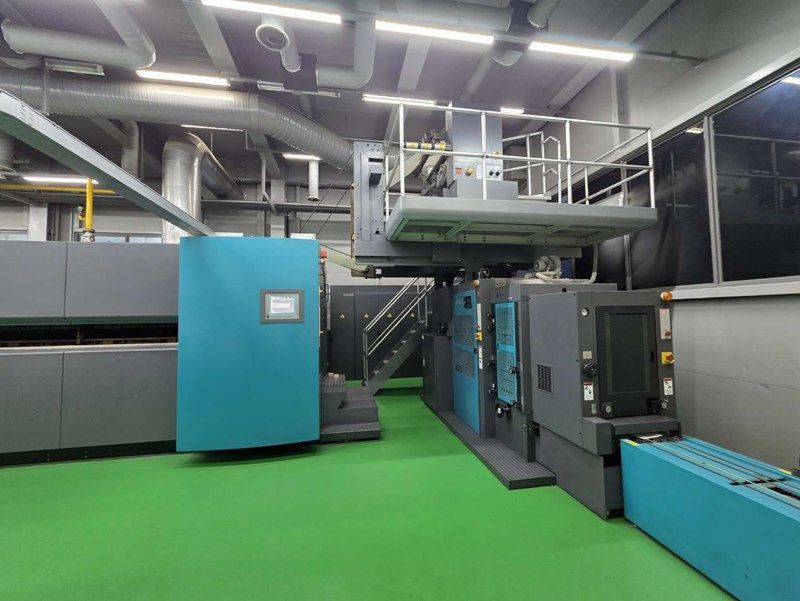

Goss M600A 4

Cut-off: 625 mm (microgap)
Max web width: 965 mm
Max transfer area: 618 x 960 mm
Max speed: 48,000 IPH
Max web speed: 8.33 m/s
Impression Count: circa 426 million
Comprising of: (1) Contiweb Horizontal Splicer SH40-CI-1020
(4) Goss M600A blanket to blanket printing units
(1) BALDWIN Automatic blanket cleaning system IMPACT flex for 4 units
(1) TECHNOTRANS Multi.fill Ink Leveler System for 4 units
(1) TECHNOTRANS combination circulator for 4 units
(1) BALDWIN Model 190 web severer w/ defeat box
(1) Goss Contiweb Dryer with integrated Afterburner and chill roll section ECOCOOL®/T 93-1020 for 1 web
(1) GOSS Multiple combination folder model JF-48™ for one web for:
• A3: Tabloid
• A4: ¼ fold
(1) GOSS Silicone Applicator for 1 web (coats both sides of web)
(1) BALDWIN softening 2 head system
(1) QuadTech Performance Package (Less Closed Loop Color) 38 inch 4U1W, Register Control is performed with the Vector™ cameras, The QuadTech Ribbon Control System with Multicam™
(1) GOSS Silicone Applicator for 1 web (coats both sides of web)
(1) GOSS CONTIWEB® VPN connection: (1) Trang Yun Automatic plate punch and bender
(1) GOSS Omnicon® Control system
(1) Goss Web Center™ Base including one Goss Prepress Interface

Option:
(1) Post Press Equipment
Japan Huji Automatic Bundle Stacker Model TPSO and Robot Palletizer Model EC-171HW
