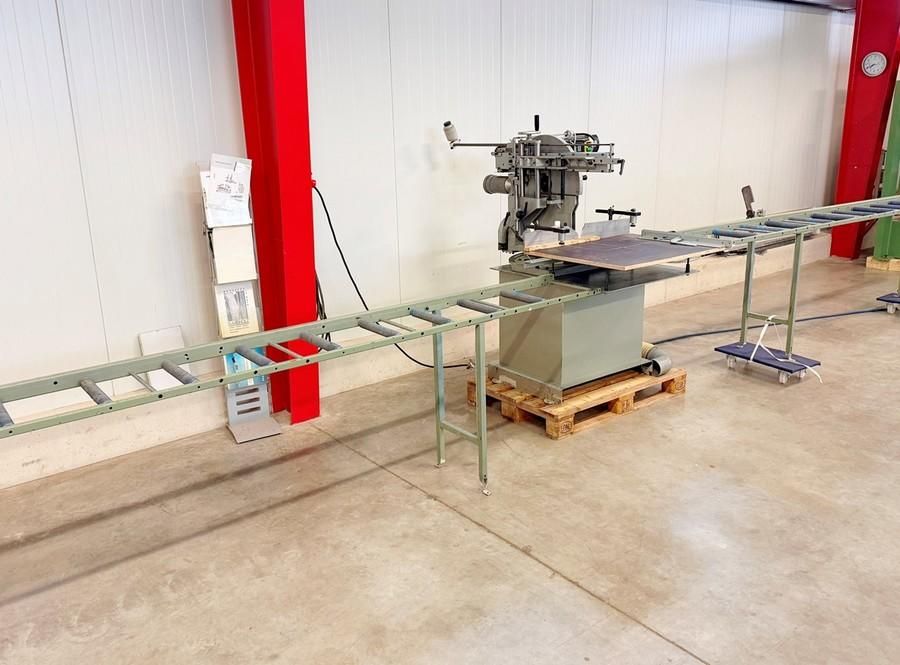

Graule ZS 200 N

Crosscut and mitre saw
Saw can be swiveled and tilted
3 kW three-phase brake motor 400 V
Saw blade diameter 520 mm
Saw blade holder 50 mm
Cutting height 200 mm
Saw blade tilted to 45°: Cutting height 140 mm
Cutting length 420 mm
Table dimensions 900 x 700 mm LW
Aluminium fence back
With machine stand and hand crank at the rear for tilt adjustment
Hydraulic feed brake
Pneumatic material clamping on both sides from above
Saw blade spray device for coolant or lubricant
Carbide circular saw blade for aluminium and plastics, diameter 520 mm
Roller conveyor type RLK 4000 mm, with fold-away material fence and scale
Roller conveyor 4000 mm long after the saw
Roller conveyor width 350 mm
Transport dimensions machine approx. 1650 x 1200 x 1850 mm LWH, roller conveyors approx. 4500 x 400 x 1950 mm LWH
Weight approx. 350 kg
